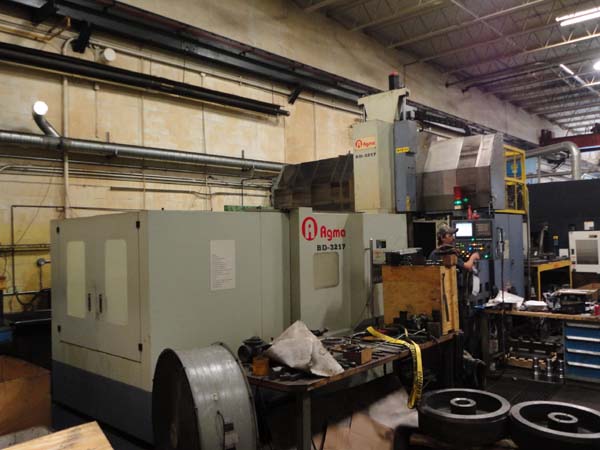

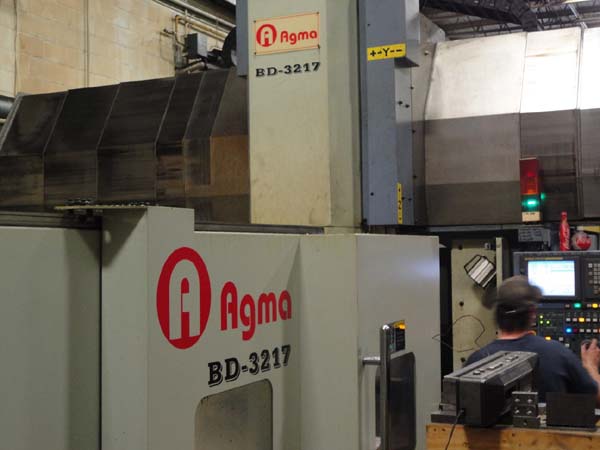

Agma 3-Axis Double Column Bridge Type
Vertical Machine Center
Model BD-3217 , New 2008
Equipped with:
Fanuc 18iMB CNC, Manual Pulse Generator, Chip Conveyor
40 Position Automatic Tool Changer, RS-232 Port, SD Card
Air Blast, Tool Eye Measurement, 2-5/16" Sub Plate,
Chiller, Eclipse Magnet System (4) 40"X20" Plates,
Tool Touch Off Probe, Full Guarding, Flood Coolant,
Stainless Steel Way Covers
Catalogue Specifications:
Table Size: 118" X 60"
Max Table Load Cap: 17,600 lbs
X Axis: 125.9"
Y Axis: 63"
Z Axis: 31.5"
Distance Between Columns: 69.3"
Spindle Nose to Table: 7" - 40"
Rapid Rates: 787/787/394 X,Y,Z
Spindle Speeds: 6000 RPM
Spindle Taper: Cat 50
Main Motor Drive: 30/35 HP
Floor Space: 336" x 201" x 154"
Weight: 61,000 lbs
Floor Space: 35' X 12'
