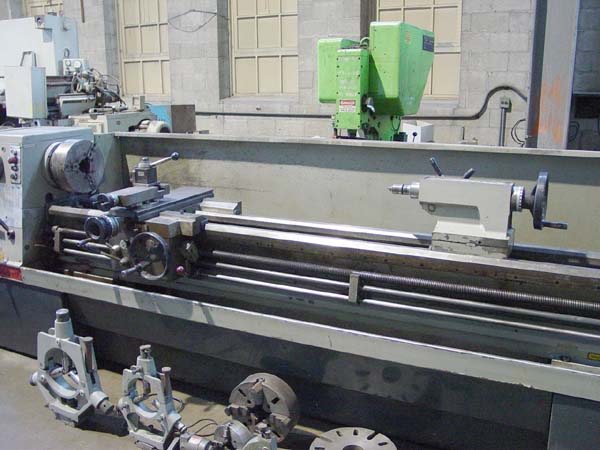

17" X 100" CLAUSING COLCHESTER GEARED HEAD ENGINE LATHE
              Model 8057 Gap Bed, S/N 7/0223/15983DD, New 1983
                                         Stock# K13698



EQUIPPED WITH:

12" 3-Jaw Chuck, 12" 4-Jaw Chuck, 8" 4-Jaw Chuck, 14" Face Plate,
(2) Steady Rest, Inch/Metric Threading, Follow Rest, DuMore Tool Post

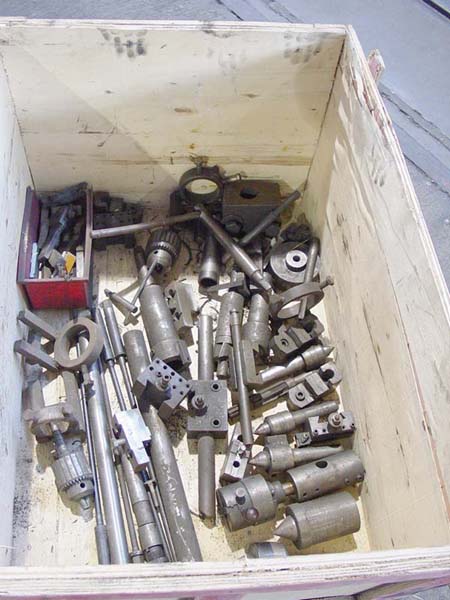

Grinder, Aloris Tool Post,  Coolant/Chip Pan, Tooling Package including
'drop-on' holders and centers.

CATALOGUE SPECIFICATIONS:
Max Swing Over Bed Ways.............................. 17-1/4"
Swing Over Cross Slide............................... 10-1/2"
Max Distance Between Centers......................... 100"
Hole Thru Spindle.................................... 3-1/6"
Tailstock, Spindle Travel............................ 7"
Tailstock, Spindle Taper............................. #5 MT
Spindle Speeds, (16)................................. 20 - 1600 (RPM)
Carriage Longitudinal Feeds (45)..................... .002 - .032 IPR
Thread Changes, US Standard (38)..................... 2 - 72 TPI
Thread Changes, Metric (40)......................... .4 - 14 TPCM
Main Motor........................................... 10 HP
Approximate Machine Dimensions ...................... 138" x 44"
Approximate Machine Height .......................... 57"
Approximate Machine Weight........................... 7,500 LBS



CONDITION: Used in a Tool Room. Appears to be in Excellent Condition !
