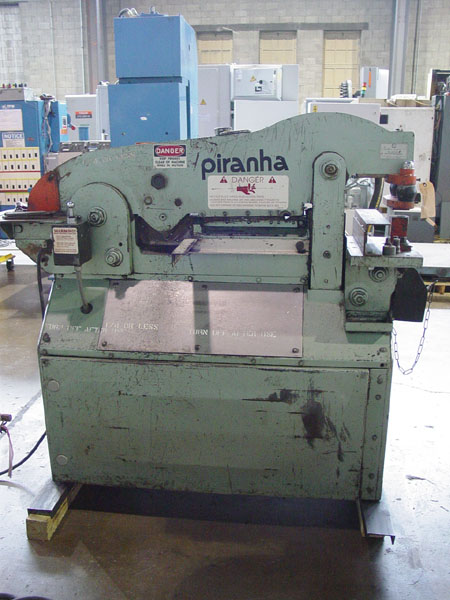

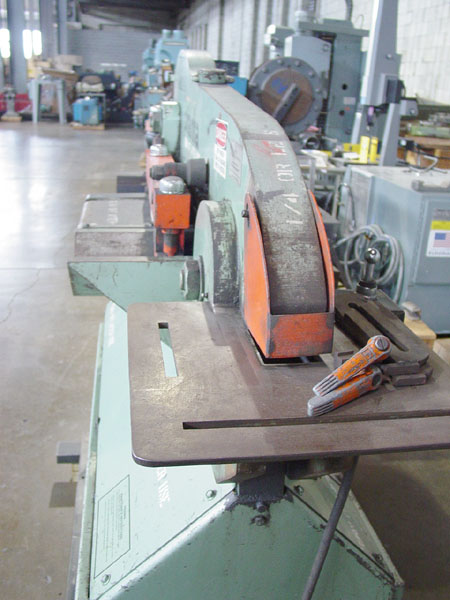

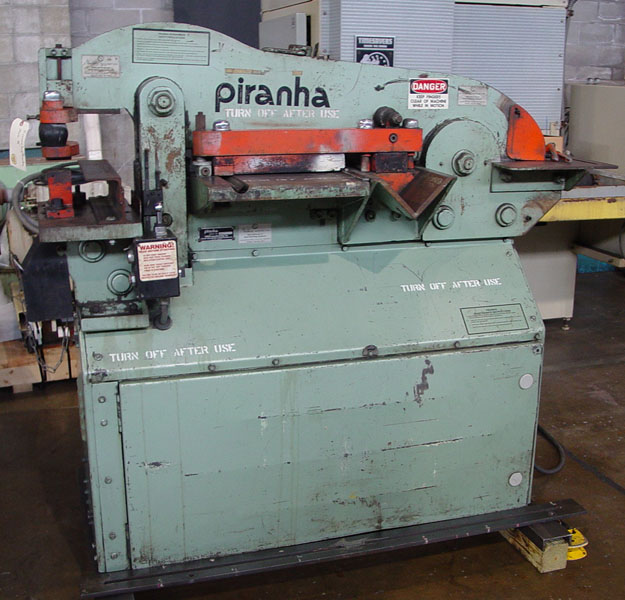

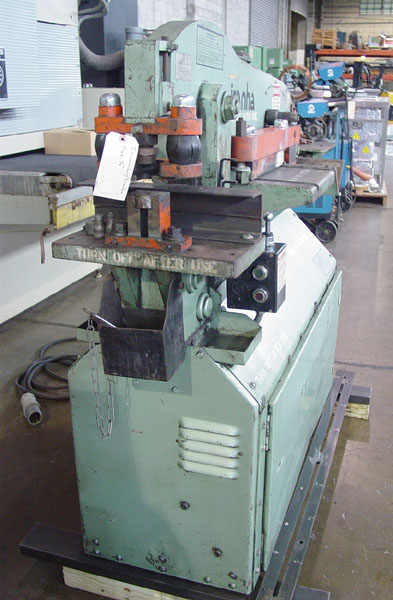

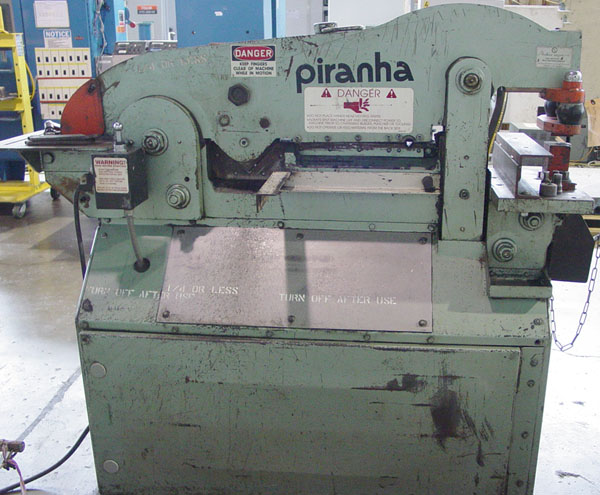

50 TON PIRANHA IRON WORKER
          Model P50, New 1988, S/N P3-2325
                           Stock# K13717

EQUIPPED WITH:

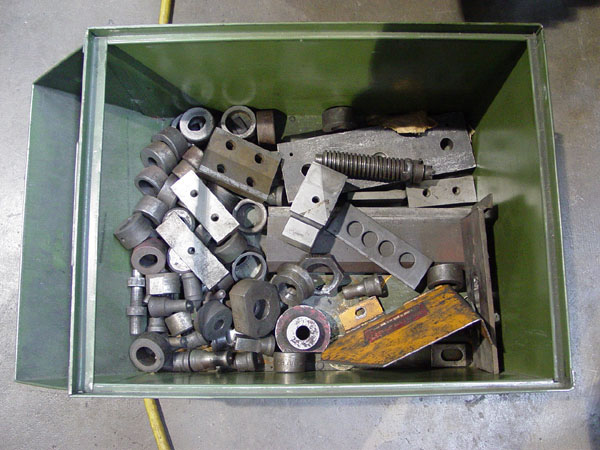

Power Punch, Angle Shear, Bar Shear, Notcher-Coper, Misc Tooling
Including Blades and Punches.



CATALOGUE SPECIFICATIONS:

Throat Depth........................................ 8"
Open Height......................................... 13-1/2"
Stroke Length....................................... 4-1/4"
Platen Table........................................ 10" x 17"
Punch............................................... 50 Ton
Punch Capacity in 5/8" Steel........................ 1"
Punch Capacity in 3/4" Steel........................ 13/16"
Punch Capacity in 1/8" Steel........................ 5"
Punch Capacity in 1/2" Steel........................ 1-1/4"
PLate Shear......................................... 14" Long
Shear Capacity Mild Steel........................... 3/4" x 10"
Shear Capacity Mild Steel........................... 5/8" x 14"
Angle Shear Capacity................................ 5" x 5" x 3/8"
Notching Capacity................................... 2-3/4" x 4" x 1/4"
Bending Capacity.................................... 8"
Hydraulic Motor .................................... 10 HP
Approximate Machine Dimensions...................... 32" x 60"
Approximate Machine Height.......................... 60"
Approximate Machine Weight.......................... 2,800 lbs



CONDITION:  Appears to be in Very Good Condition !
