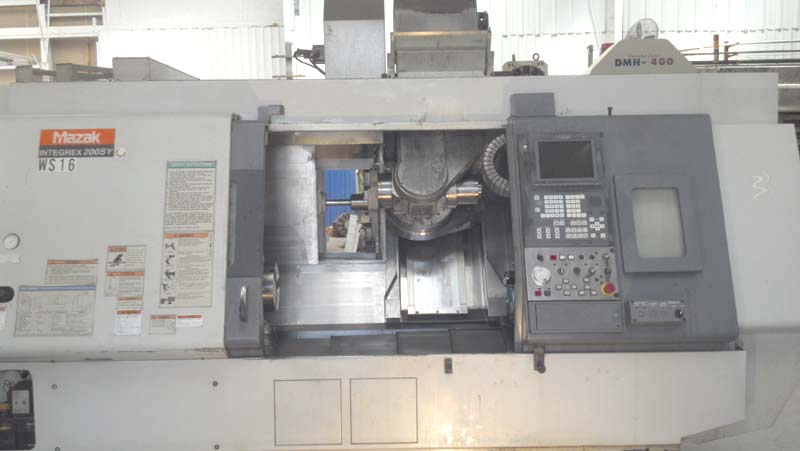

1999 Mazak Integrex 200SY Mark II CNC Turning
Center
Equipped With:
Mazatrol Fusion 640MT CNC Control
C-Axis (Both Spindles)
Main Spindle Chuck: 8"
Sub-Spindle Chuck: 6"
Chip Conveyor (Mayfram Concept 2000 Style)
External Coolant Chiller
Spindle Lube Chiller
KM63 Tooling Package
Catalogue Specifications:
Swing: 21.26"
Max. Machining Length: 40"
Main Spindle Speed: 5000 RPM
Sub-Spindle Speed: 5000 RPM
Milling Spindle Speed: 6000 RPM
Spindle Taper: Kennametal Style KM63
Spindle Motor: 30 HP
Sub-Spindle Motor: 10 HP
Milling Spindle Motor: 7.5 HP
No. of ATC Positions: 40 ATC
Note: Inspect under power - Southeast
