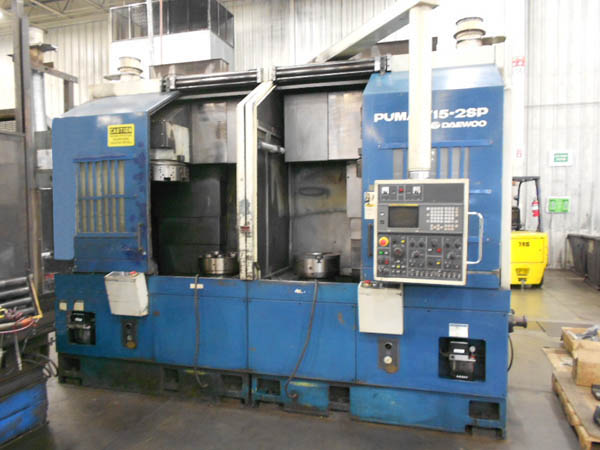

DAEWOO PUMA V15-2SP TWIN SPINDLE CNC VERTICAL TURNING CENTER
                  Model V15-2SP, S/N 2V150019, New 1996
                                                    Stock# K13772



EQUIPPED WITH

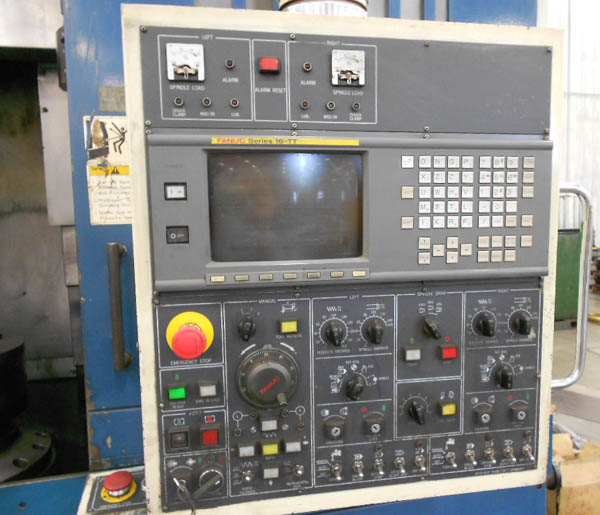

Fanuc 16-TT CNC Controls, Fanuc Digital AC Spindle and Servo Drives,

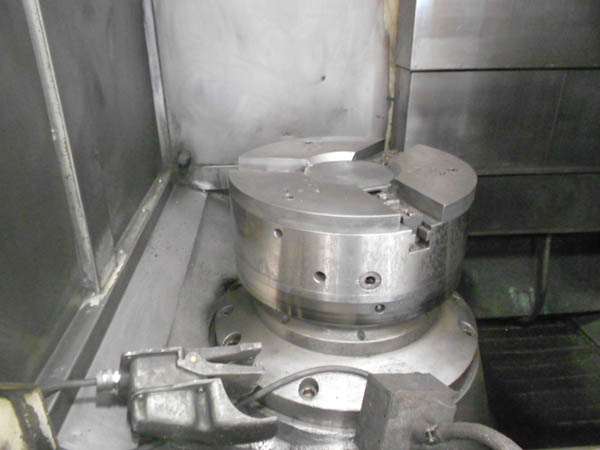

High Speed 32-Bit Microprocessor and Bus, (2) 15" 3-Jaw Chucks, (2)
8-Position Turrets, 30HP Spindles, (2) Chip Conveyors, Rigid Box Way
Construction, Fast Bidirectional Turret Indexing, Large Diameter Ball
Screws, Double Pretensioned Ball Screw Support, Torque Limiter Clutches
on Feed Axis, Automatic Lubrication System, Backlash Compensation,
Constant Surface Speed Control, Self Diagnostic Functions, Auto Door,
Auto Blower Device, Chip Flushing, 150 KVA Transformer.



CATALOG SPECIFICATIONS:
Max Swing.................................. 31.5" (800mm)
Max. Turning Diameter...................... 25.6" (650mm)
Max. Turning Length........................ 25.6" (650mm)
Spindle Speeds............................. 15-1500 RPM
Travel Distance
        X.................................. 13.8" (350mm)
        Z.................................. 26.8" (680mm)
Rapid Traverse
        X.................................. 472 IPM (12 m/min)
        Z.................................. 630 IPM (16 m/min)
Number of Turrets.......................... 2
Type of Turret............................. 8-Station Drum
Approximate Machine Dimensions............. 150"x104"
Approximate Machine Height................. 116"
Approximate Machine Weight................. 39,600 Lbs (18,000 KG)
