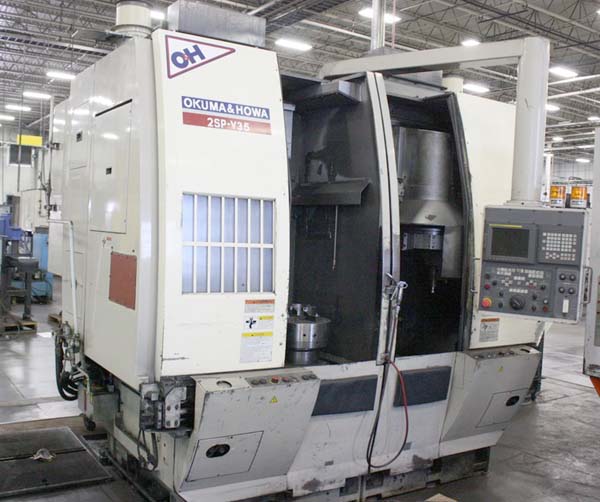

OKUMA & HOWA 2SP-V35 TWIN SPINDLE CNC VERTICAL TURNING CENTER
                                                         Model 2SP-V3, S/N 35233, New 2000
                                                                            Stock# K13773



EQUIPPED WITH
Fanuc 18i-T CNC Controls, Multiple Part Program Storage, RS-232 Port,
(2) 15" 3-Jaw Hydraulic Chucks, Can take up to 18" Chucks. Automatic
Doors, (2) 10-Position Horizontal Turrets, (3) 30 HP Spindle Motors,
Coolant, Auto Lube System, (2) Chip Conveyors, Work Light.



CATALOG SPECIFICATIONS:
Swing Inside the Guards............................................... 23.5"
Chuck Size.................................................................... 15"
Max. Cutting Diameter with Standard Tool Holders....... 14.73"
Max. Cutting Diameter with Special Toolholders........... 20"
Max. Cutting Length...................................................... 16.14"
Spindle Center Height From Floor................................. 38.19"
Spindle Speed............................................................... 20-2500 RPM
Spindle Nose................................................................. A2-8
Turret Type.................................................................... Drum Type
Number of Turrets.......................................................... 2
Tool Positions on each Turret........................................ 12 ea
Approximate Machine Dimensions (w/o Chip Conv)...... 92" x 117"
Approximate Machine Height......................................... 120"
Approximate Machine Weight......................................... 32,000 Lbs
