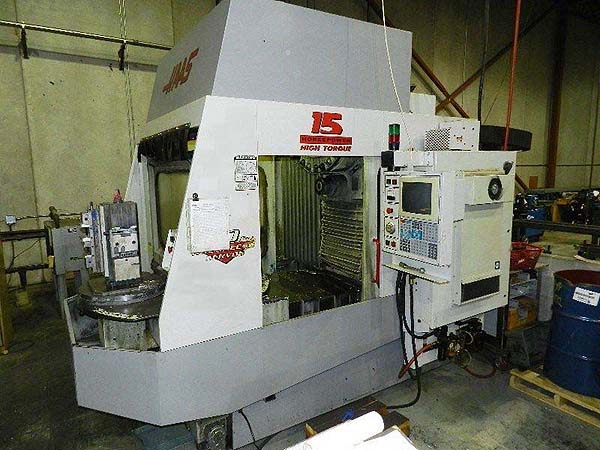

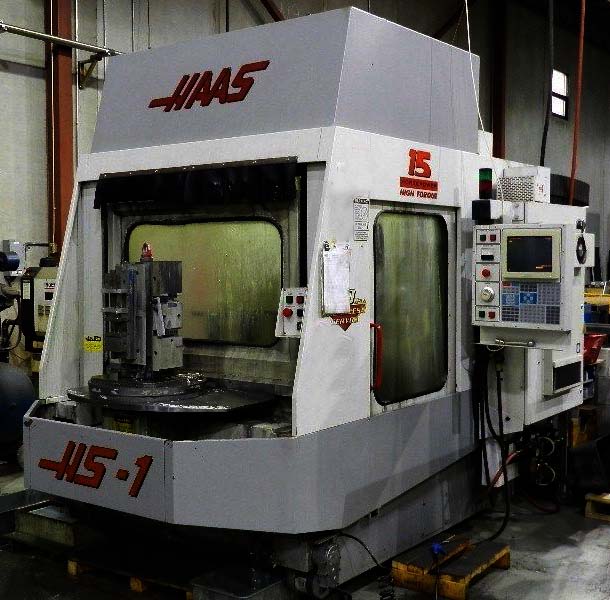

HAAS HS-1 2-PALLET CNC HORIZONTAL MACHINING CENTER
Model HS-1RP, S/N 50167, New 1996
Stock # K13797

EQUIPPED WITH:

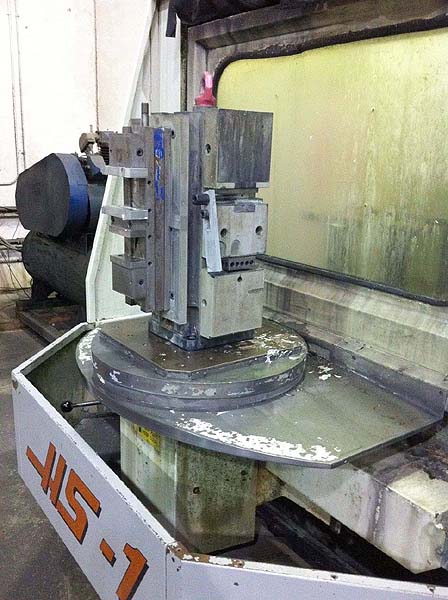

Haas CNC Control, Two 16" x 16" Pallets with 1 Degree Indexing Pallet

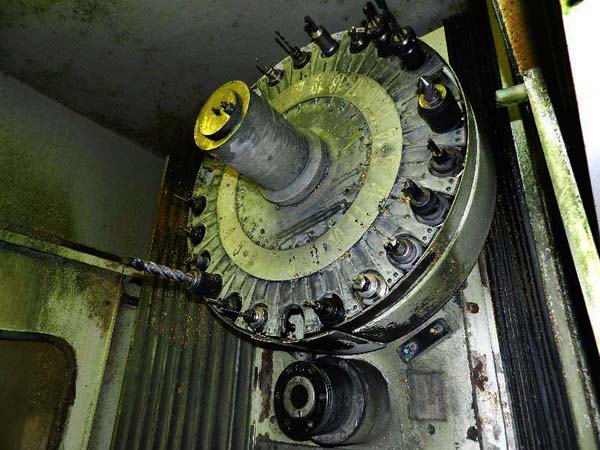

Rotation, 24 Position Automatic Tool Changer, RS-232 Port, Geared
Spindle with High and Low Range, Full Coolant Enclosure, Chip Auger and
Coolant System.

CATALOGUE SPECIFICATIONS:
Longitudinal Travel (X-Axis) ........................... 24"
Vertical Travel (Y-Axis) ............................... 20"
Spindle Travel (Z-Axis) ................................ 22"
Pallet Dimensions ...................................... 16"x 16"
Maximum Pallet Load .................................... 3000 LBS
Number of Pallets ...................................... 2
Number of Index Positions............................... 360
Feed Rate, All Axes .................................... 300 IPM
Rapid Traverse, All Axes ............................... 710 IPM
Spindle Horsepower...................................... 22 HP
Spindle Speed Range..................................... 30-7500 RPM
Spindle Taper .......................................... #40 CAT
Number of Tool Stations ................................ 24
Electrics............................................... 220/3/60
Approximate Floorspace Dimensions ...................... 140" x 110"
Approximate Machine Height ............................. 111"
Approximate Machine Weight ............................. 16,000 LBS

CONDITION: Machine Appears to be in Very Good Condition!
