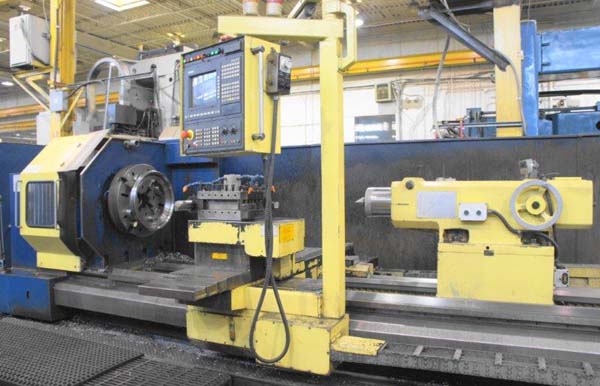

AccuTurn 45" x 248" Flat Bed CNC Lathe

EQUIPPED WITH:

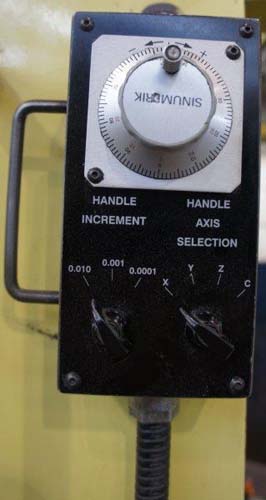

Siemens 840 C Control with remote hand control unit.
Full length chip conveyor 18” wide with 55” discharge height
Full length splash guard.

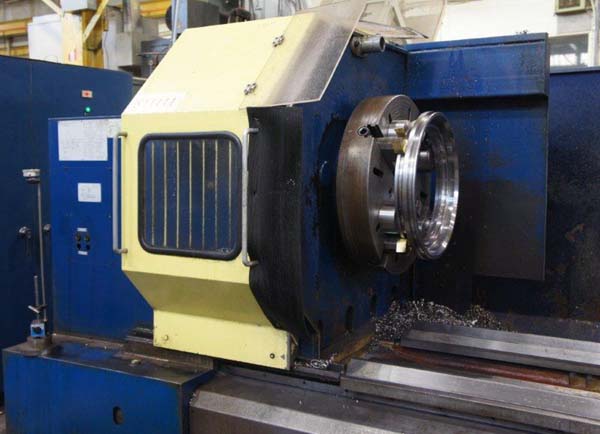

24” diameter 4 jaw manual chuck.

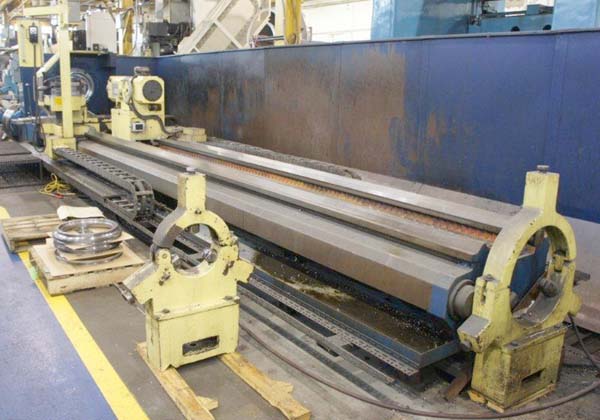

2pcs x  Three point roller steady rests 10” & 18’ capacity.
Double “V”.  28” wide bedway.

CATALOGUE SPECIFICATIONS:
Swing over Bed                                                            45”
Swing over carriage                                                      31”
Distance between centers                                              248”
Max weight between centers                                         14,300 lbs
Spindle Hole                                                                 4.5”
Main Motor                                                                  55 hp
