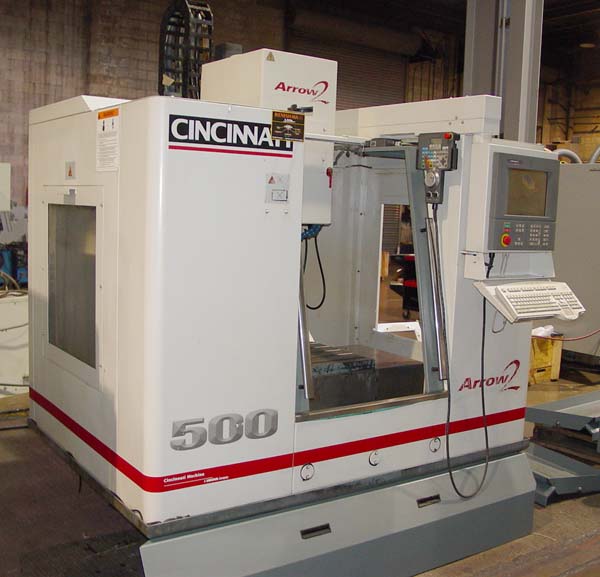

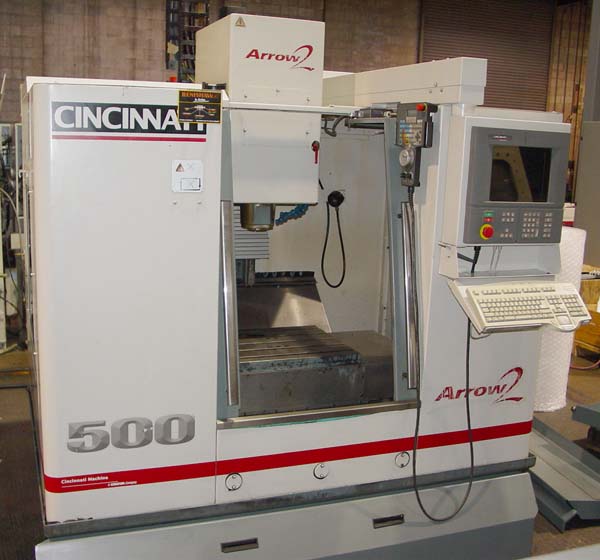

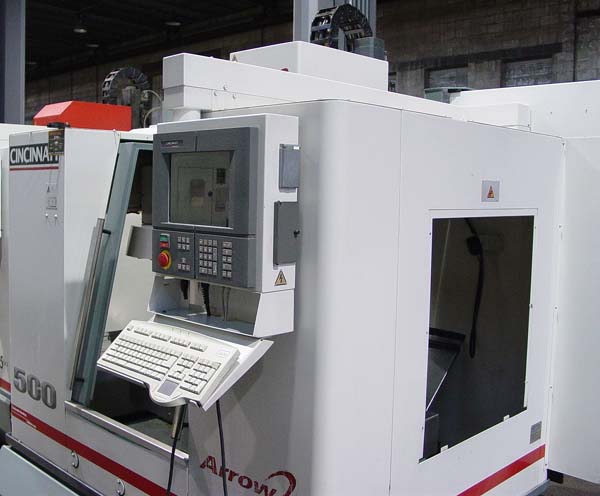

CINCINNATI ARROW-500 CNC VERTICAL MACHINING CENTER
                       New 2001, S/N 7042A00KT-2198
                                 Stock# K13804
EQUIPPED WITH:

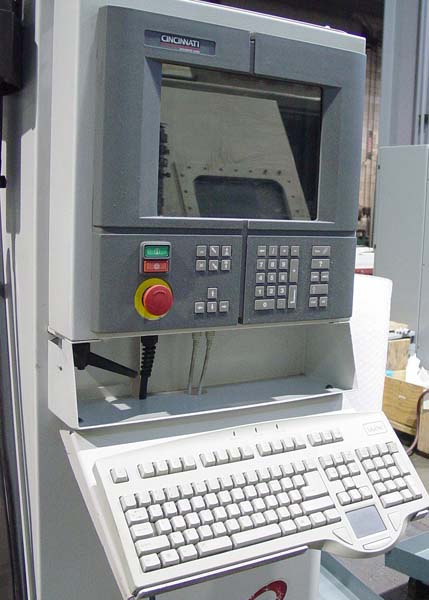

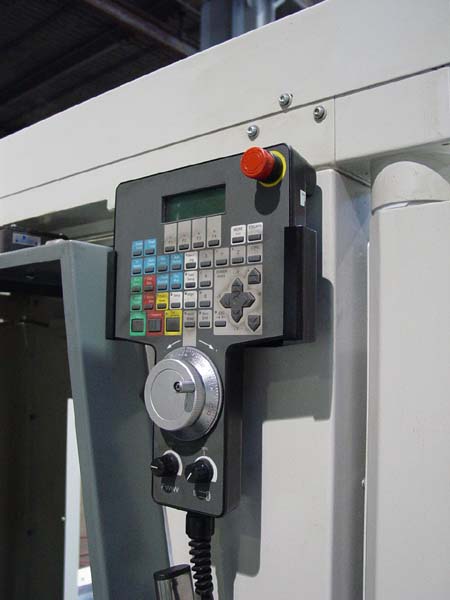

Acramatic 2100di CNC Control w/ Color CRT (P.C. Based), Hand Held

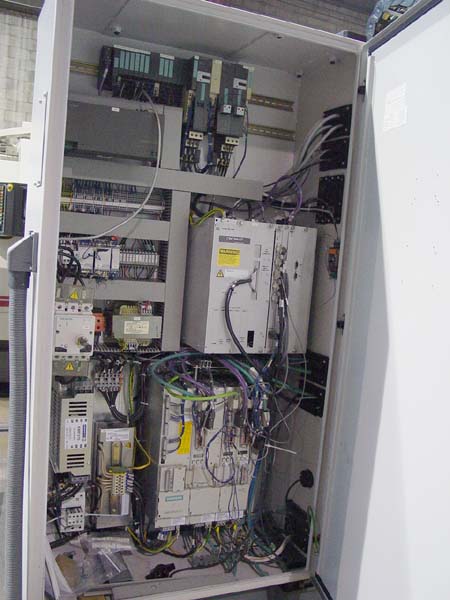

Pendent, Complete Siemens Drive and Servo Package, Rigid Tapping,
Scale Feedback on All Axis, 21 Station Automatic Tool Changer, Full
Coolant Enclosure, Keyboard, Spindle Load Meter, Chip and Coolant
System.



CATALOGUE SPECIFICATIONS:



X Travel (Longitudinal)............................... 20"
Y Travel (Cross)...................................... 20"
Z Travel (Vertical)................................... 22"
Table Working Surface................................. 27.5"x20.5"
Table Work Load Capacity.............................. 770 LBS
Spindle Horsepower.................................... 10 HP
Spindle Speeds........................................ 30-8000 RPM
Spindle Taper......................................... #40 CAT
Feed Rates, X & Y..................................... 0.1 to 472 IPM
Feed Rate, Z.......................................... 0.1 to 393 IPM
Rapid Traverse X & Y.................................. 787 IPM
Rapid Traverse Z...................................... 787 IPM
Tool Storage Capacity................................. 21
Approximate Dimensions................................ 79" x 87"
Approximate Height.................................... 106"
Approximate Weight.................................... 8,820 LBS

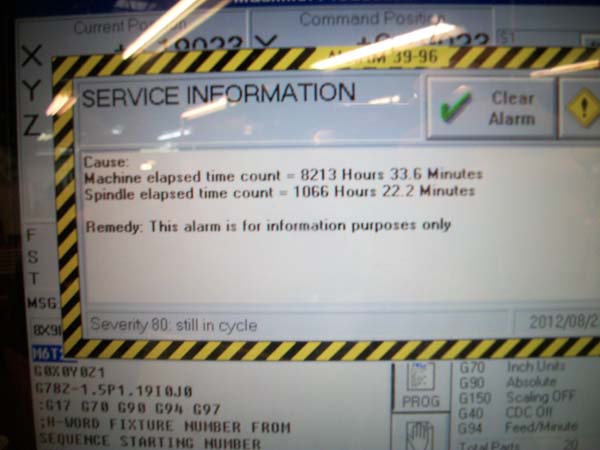

CONDITION: Only 8200 Run Hours and 1600 Spindle Hours. This Machine
           Appears to be in Excellent Condition !
