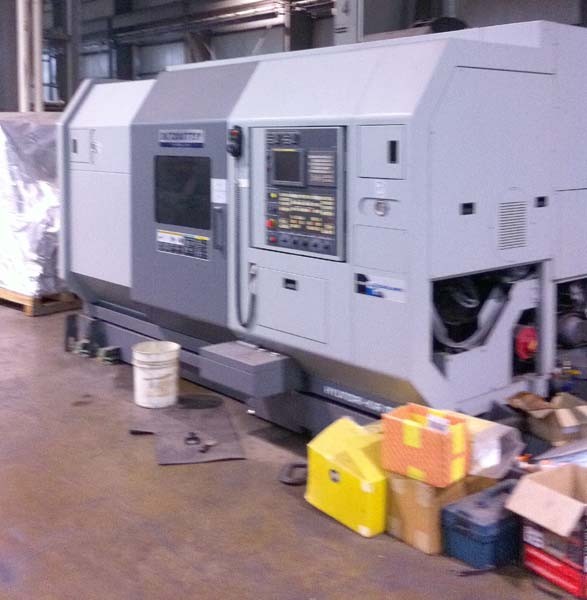

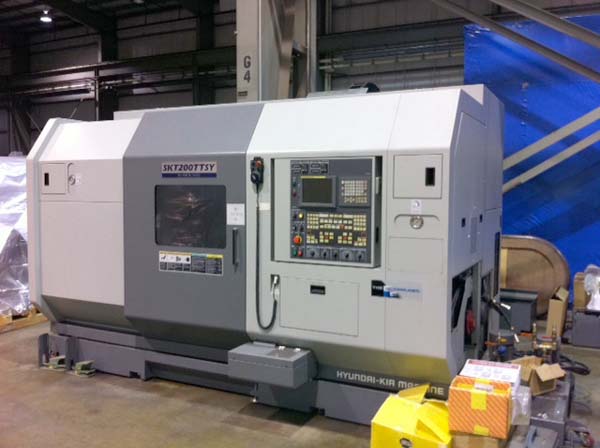

HYUNDAI KIA SKT200TTSY CNC Turning Center with live tool, Y-Axis,
twin turrets and twin spindles
Stock# K13806
EQUIPPED WITH:
FANUC 18i-TB CNC Control w/ Color CRT, 320M Program Storage, Hand Held
Pendent, Upper and Lower Turrets, Twin 20Hp Spindles, Full C-Axis in
Both Spindles, Tool Setting Probe for Both Turrets, (2) 8" 3-Jaw
Chucks, Spindle Load Meter, Chip and Coolant
System.
CATALOGUE SPECIFICATIONS:
Chuck Size (2)................ 8"
Swing over bed................ 30.7"
Swing over cross slide.............. 27.6"
Max Turning Diameter (Upper)........... 15.4"
Max Turning Diameter (Lower)............ 11.8"
X-Axis Travel Upper Turret........ 10.6"
X-Axis Travel Lower Turret............. 7.5"
Z-Axis Travel Both Turrets............. 36.2"
Y-Axis Travel Upper Turret Only............. 4.72" (+- 2.36")
Spindle Power (both)....................... 20/33 HP
Spindle Speed (both)...................... 50 ~ 5,000 RPM
Bar Capacity........................................ 2.5"
Live Tooling........................ 4,000 RPM 7.4 / 3 HP
CONDITION: DEMO MACHINE ! Only Ran 10 Test Parts.
Appears
to be in Like New Condition !
