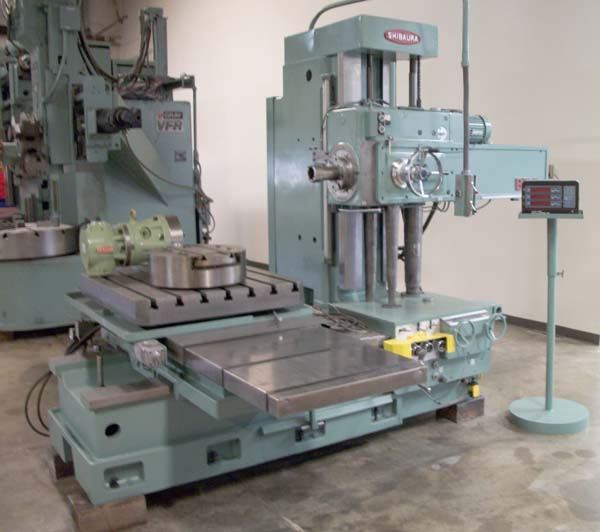

3" TOSHIBA SHIBAURA TABLE TYPE HORIZONTAL BORING MILL
                             Model BZ-8, New 1978 Stock# K13807



EQUIPPED WITH:

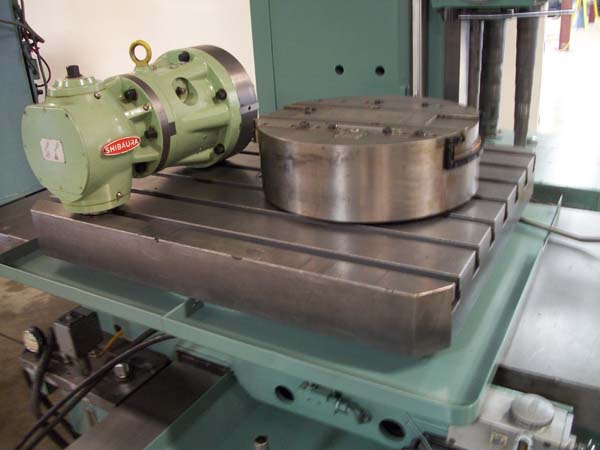

3 Axis Digital Readouts,41" x 35" Built-in Rotary Table,

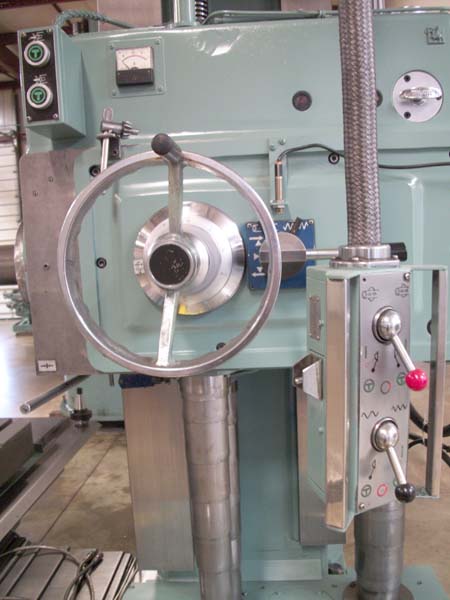

Operators Pendent Control, Telescoping Steel Way Covers, Facing Head,  Angle Head.



CATALOGUE SPECIFICATIONS:



Spindle Diameter................................... 3.15"
Table Size......................................... 41" x 35"
Table Load Capacity................................ 4,400 lbs
Table Cross Travel (X-Axis)........................ 39.4"
Vertical Travel Above Std Machine Table (Y-Axis)... 31.5"
Spindle (Quill) Travel(Z-Axis)..................... 15.8"
Saddle Longitudinal Travel (W-Axis)................ 27.6"
Spindle Taper...................................... #50 Taper
Spindle Horsepower................................. 10 HP
Spindle Speeds .................................... 32 to 1180 RPM
Electrics.......................................... 460/3/60
Approximate Machine Dimensions..................... 135" x 140"
Approximate Machine Height......................... 95"



CONDITION:  This Machine Appears to be in Excellent Condition!
