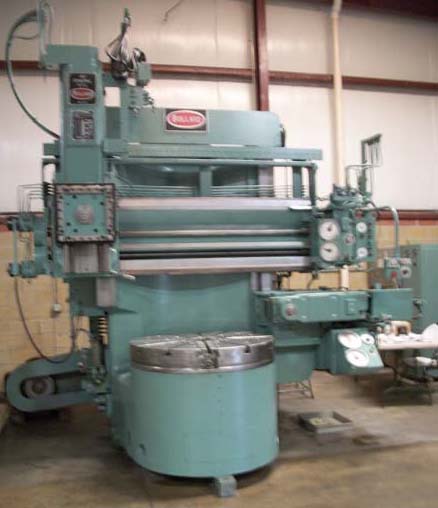

46" BULLARD VERTICAL BORING MILL
Model Dynatrol, New 1974, Stock# K13809

EQUIPPED WITH:

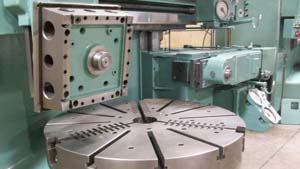

46" 3-Jaw Power Chuck, 4-Side Turret Rail Head w/12 Tool
Positions, Side Head, Hard Ways, Ballscrews.

CATALOGUE SPECIFICATIONS:

Chuck Diameter........................................ 46"
Maximum Swing......................................... 58"
(20) Chuck Speeds, Range.............................. 9-392 RPM
(16) Feeds, Range..................................... .001-.250 IPR
Maximum Height Under Rail............................. 40"
Maximum Height Under Turret Head...................... 36"
Vertical Turret Head Travel........................... 19"
Horizontal Turret Head Travel......................... 59
Turret Head Swivels, Degrees.......................... 30
Motor, Horsepower/RPM................................. 90 HP/1800RPM
Electrical System..................................... 220/440/3/60
Approximate Dimensions................................ 114"x104"
Approximate Height.................................... 116-1/2"
Approximate Weight.................................... 34,000 Lbs.

CONDITION:  Completely Checked out by a Bullard Experts, Cleaned, Painted and Cycled. Machine         appears to be in Excellent Condition !
