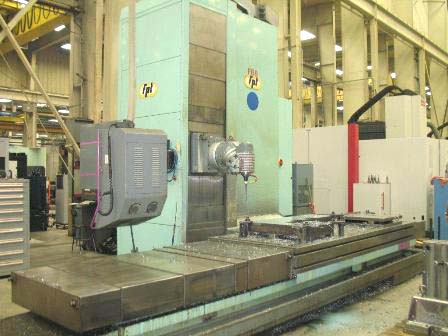

FPT 5-Sided CNC RAM TYPE VERTICAL/HORIZONTAL MACHINING CENTER
                       New Area-T LEM936L, Stock# K13811



EQUIPPED WITH:

Fidia F1 CNC Control w/ Color CRT, Multiple Part program Storage, RS-232
Data Line, 2-Axis Universal Head, Heavy Duty 30 HP Spindle with #50
Taper, Chip Conveyor, and Coolant System.



CATALOGUE SPECIFICATIONS:

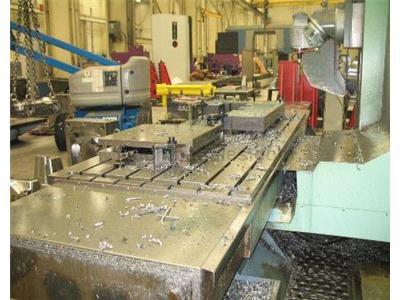

Table Working Surface................................. 50" x 137"
Table Load Capacity................................... 22,000 LBS
Longitudinal Travel (X-Axis).......................... 118.12"
Vertical Head Travel (Y-Axis)......................... 78.74"
Column Cross Travel (W-Axis).......................... 59.05"
Ram Travel (Z-Axis) .................................. 41.34"
Ram Size.............................................. 17.7" x 19.68"
Universal CNC 2-Axis Indexing Head.................... 1 Degree Indexing
Feed Rates (X,Y,Z Axis)............................... .4- 157 IPM
Rapid Traverse Rate (X,Y & Z-Axis)...................... 472 IPM
Spindle Horsepower.................................... 30 HP 37(30 Min)
Spindle Speed Range................................... 3-3000 RPM
Spindle Taper......................................... # 50
Electrics............................................. 460/3/60
Approximate Machine Dimensions........................ 222" x 264"
Approximate Machine Height............................ 137"
Approximate Machine Weight............................ 76,000 LBS



CONDITION: Machine appears to be in Excellent Condition !
