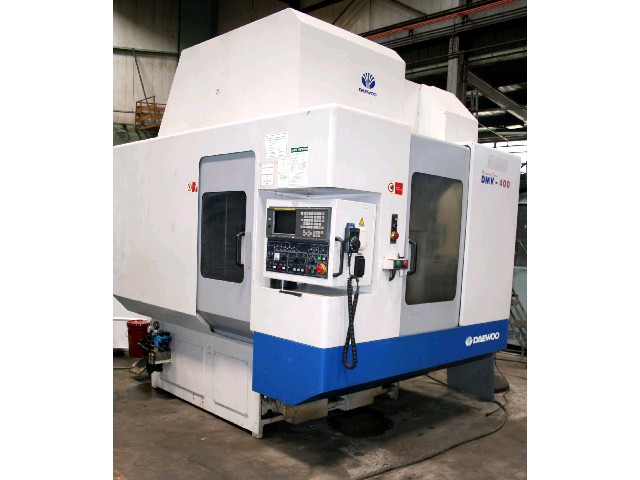

DAEWOO DMV-400 VERTICAL MACHINING CENTER
Model DMV-400, S/N AV3S0611, New 1999
Stock # K13812
EQUIPPED
WITH:
Fanuc 18M CNC w/ CRT, Remote Handwheel, Automatic Rotary Style
Work
Changer with (2) 17.7" x 25.5" Work Areas, Thru the Spindle
Coolant, 30
Station Automatic Tool Changer, Spindle Oil Cooler, Full Coolant
Enclosure, Magnetic Chip Conveyor, Coolant System.
CATALOGUE SPECIFICATIONS:
Work Area............................................. 17.7" x
25.5"
Workpiece Change Setup................................ 0/180 Deg.
Table Load Capacity................................... 660 LBS
Table Top to Spindle Nose Minimum..................... 5.9"
Table Top to Spindle Nose Maximum..................... 28.3"
Longitudinal Travel (X-Axis).......................... 22"
Cross Travel (Y-Axis)................................. 15.7"
Vertical Travel (Z-Axis).............................. 22.4"
Rapid Traverse Rate All Axes.......................... 1181 IPM
Tool Storage Capacity................................. 30
Spindle Horsepower.................................... 15 HP
Spindle Speed Range................................... 80 - 10000
RPM
Spindle Taper......................................... CAT 40
Approximate Machine Dimensions........................ 124" x 110"
Approximate Machine Height............................ 116"
Approximate Machine Weight............................ 14,000 LBS
CONDITION: Machine Appears to be in Very Good Condition !
