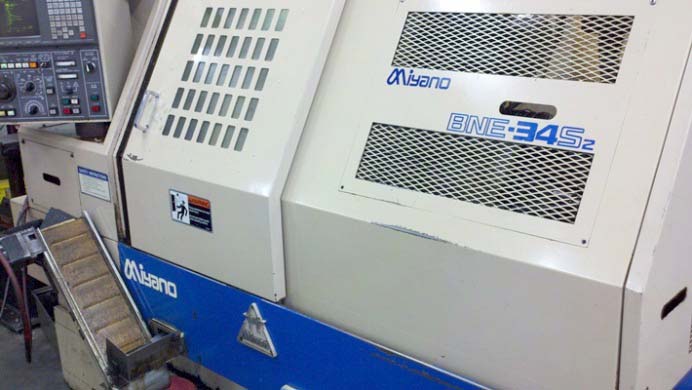

MIYANO BNE 34S2 CNC MULTI FUNCTION TURNING CENTER
      with LIVE TOOLING, TWIN TURRETS and SUB-SPINDLE
              Model BNE-34S2,  New 1998
                              Stock# K13820



EQUIPPED WITH:
Fanuc 18T CNC Control, Multiple Part Program Storage, RS-232 Port, Live Tooling, Full Contouring C-Axis Spindle, Sub-Spindle, Low Profile Collet Chucks, 12 Position Upper Turret, 10 Position Lower Turret, Parts Catcher, Barfeed Interface, Tooling of around 35 Holders Including Rotary Tools, Chip Conveyor
and Coolant System.



CATALOGUE SPECIFICATIONS:
Bar Capacity..................................... 34mm  1.339"
Max Machining Length.................................... 5"
Standard Chuck Size..................................... 5"
Spindle Nose............................................ B&S # 22
Spindle Nose Sub Spindle........................... B&S # 21
Longitudinal Travel (Z-Axis)............................ 9.25"
Cross Travel (X-Axis)................................... 4"
Number of Turrets....................................... 2
Tool Positions.......................................... 22 Total
Spindle Speed Range..................................... 50-5000 RPM
Spindle Horsepower...................................... 10 HP
Sub-Spindle Speed Range................................. 50-5000 RPM
Sub-Spindle Horse Power................................. 3 HP
Approximate Machine Dimensions.......................... 239" x 63"
Approximate Machine Height.............................. 66"
Approximate Machine Weight.............................. 11,000 LBS



CONDITION: Machine Appears to be in Excellent Condition !
