CINCINNATI MILACRON HAWK 200  CNC TURNING CENTER WITH LIVE TOOLING
                 Model TC-200M, S/N 7059F0099-0104, New 1999
                                                  Stock # K13821



EQUIPPED WITH:

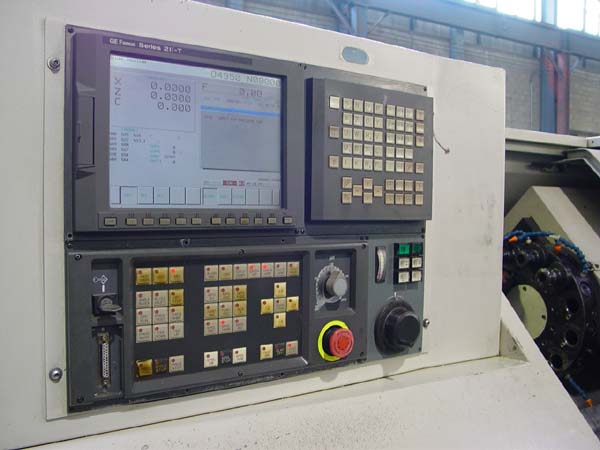

Fanuc 21i CNC Control, Multiple Part Program Storage, RS-232 Port,  10" 3-Jaw

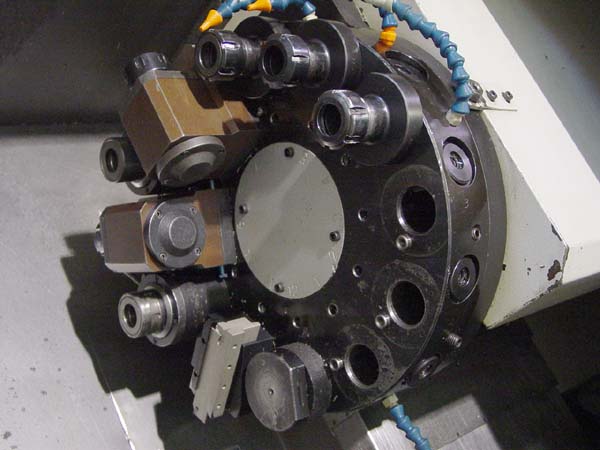

Kitagawa Chuck and ATS Collet Chuck,  Live Tooling,  Full C-Axis Contouring Spindle,

Barfeed Interface, Parts Catcher, Tooling Package Including 6 Driven Holders,

Chip Conveyor and Coolant System.



CATALOGUE SPECIFICATIONS:

Max Swing Over Bed...................................... 20.87"
Max Swing Over Carriage................................. 11.81"

Max Turning Diameter Chucking...................... 16.53"

Max Tailstock Position.................................. 35.18"
Cross Travel (X-Axis)................................... 9.65"
Longitudinal Travel (Z-Axis)............................ 21.26"
Feed Range (Infinitely Variable)........................ .1-630 IPM
Rapid Traverse Rate (X-Axis)............................ 630 IPM
Rapid Traverse Rate (Y-Axis)............................ 1000 IPM
Number of Turrets....................................... 1
Tool Positions.......................................... 12 Total
Spindle Nose............................................ A2-6
Spindle Speed Range (1 RPM Increments).................. 30-4500 RPM
Spindle Horsepower...................................... 15 HP
Electrics............................................... 230/460/3/60
Approximate Machine Dimensions.......................... 58.2" x 38"
Approximate Machine Height.............................. 63.8"
Approximate Machine Weight.............................. 10,300 LBS



CONDITION: Machine Appears to be in Excellent Condition.

New Spindle Bearings and Y-Axis ball Screw installed in September.
