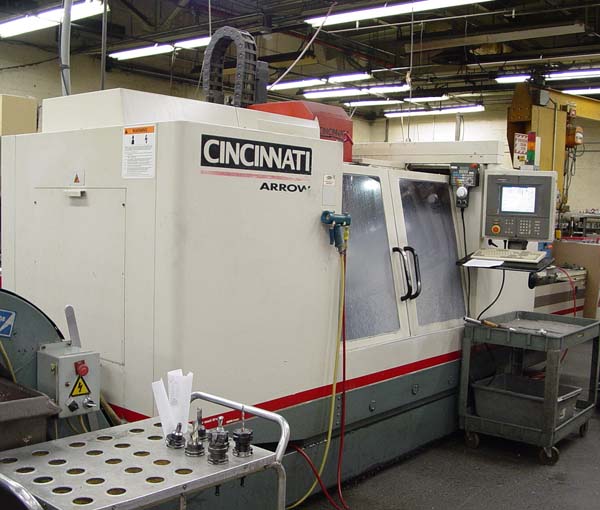

CINCINNATI 2-PALLET CNC VERTICAL MACHINING CENTER
                 Model Arrow 1250C, New 2000, Stock# K13827



EQUIPPED WITH:

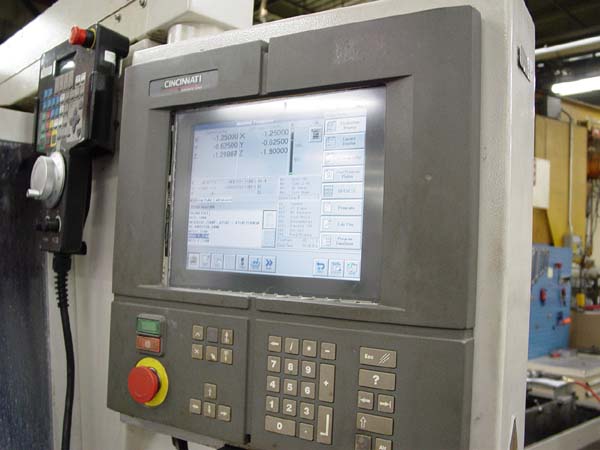

Acramatic 2100 PC Based CNC Control w/ Color CRT, Touch Screen
Programming, 4MB Program Storage, Midaco Automatic Pallet Shuttle
System with (2) Pallets, Migrating Tools, Fanuc Program Translation,
3-1/2" Floppy Disk Drive, RS-232 Port, 21 Station Automatic Tool
Changer, Full Coolant Enclosure, Chip Conveyor and Coolant System.

CATALOGUE SPECIFICATIONS:

X Travel (Longitudinal)............................... 50"
Y Travel (Cross)...................................... 20"
Z Travel (Vertical)................................... 22"
Table Working Surface................................. 60"x26"
Pallet Size (2)....................................... 50" x 22"
Table Work Load Capacity.............................. 4410 LBS
Spindle Horsepower.................................... 15 HP
Spindle Speeds........................................ 60-8000 RPM
Spindle Taper......................................... CAT 40
Feed Rates, X & Y..................................... 0.1 to 590 IPM
Feed Rate, Z.......................................... 0.1 to 590 IPM
Rapid Traverse X & Y.................................. 944 IPM
Rapid Traverse Z...................................... 945 IPM
Tool Storage Capacity................................. 21
Approximate Dimensions................................ 145" x 112"
Approximate Height.................................... 142"
Approximate Weight.................................... 19,360 LBS



CONDITION: Machine appears to be in Excellent Condition !
