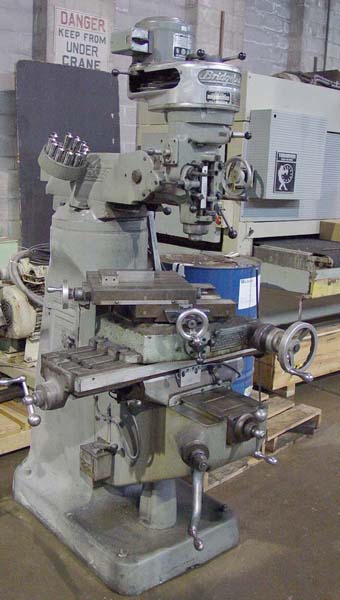

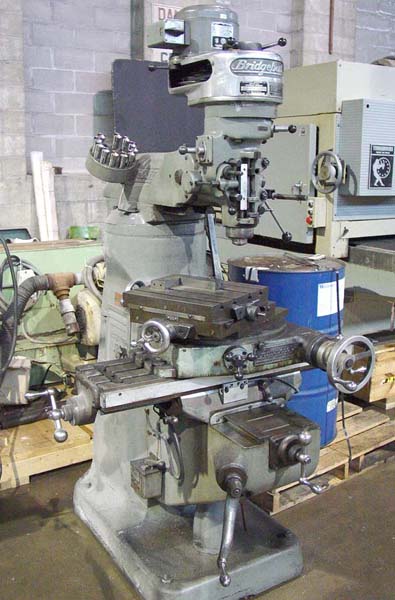

BRIDGEPORT SERIES I VERTICAL MILL
                         New 1974, S/N 150421
                              Stock # K13828



EQUIPPED WITH:

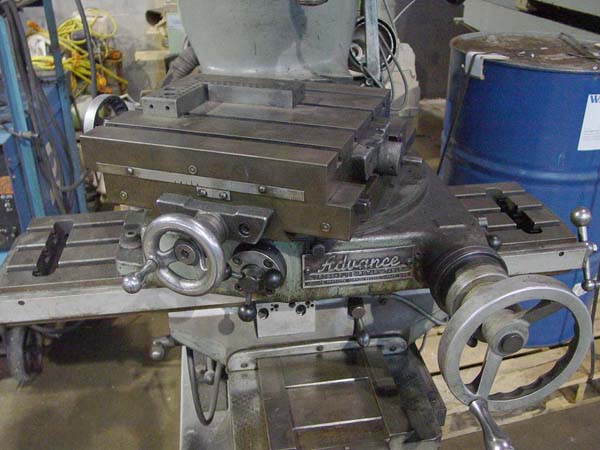

Bridgeport 'Swivel Type' 'J' Style Head, 13" x 13" Advanced Products
Rotary Table with 2-Axis X and Y Movement and 360 Degree Rotation,  Knee

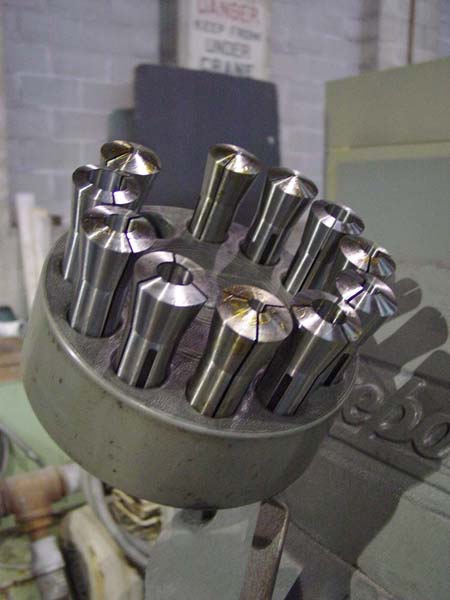

Lock, Swivel Type Dovetail Overarm, Tooling.

SPECIFICATIONS:

Table Dimensions (Overall, W x L)......................... 9" x 36"
Table Working Surface, W X L.............................. 9" x 36"
Longitudinal Table Travel (X-Axis)........................ 20"
Cross Saddle Travel (Y-Axis).............................. 12"
Vertical Knee Travel (W-Axis)............................. 16"
Vertical Head Travel (Z-Axis)............................. 5"
Advanced Products Rotary Table Surface.................... 13" x 13"
Rotary Table Top Slide Travel............................. 10"
Rotary Table Bottom Slide Travel.......................... 10"
Rotary Table Rotation..................................... 360 Degrees
Spindle Taper............................................. R-8
Spindle Speeds (8), Range................................. 80-2720 RPM
Drive Type................................................ Belt
Motor (Spindle)........................................... 1 HP
Electrics................................................. 220/3/60
Approximate Machine Dimensions............................ 60" x 66"
Approximate Machine Height................................ 78"
Approximate Machine Weight................................ 2200 lbs.
