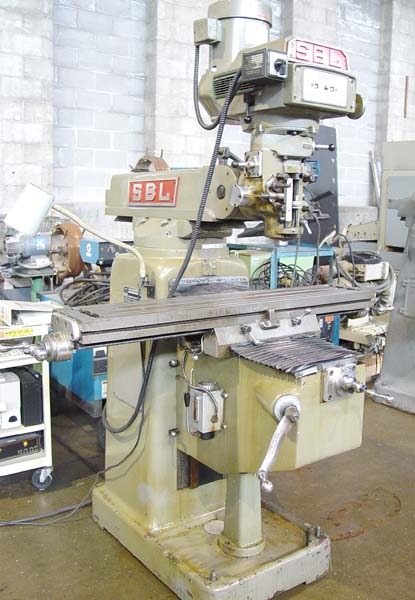

SOUTHBEND VERTICAL MILL
                     Model 2VH, New 1985, Stock # K13829



EQUIPPED WITH:

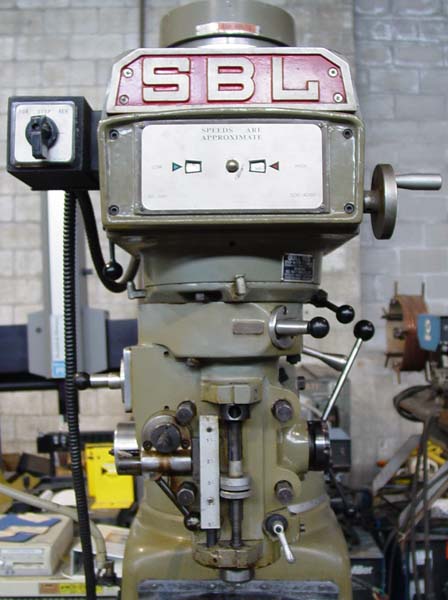

3 HP Variable Speed Head, Power Quill Travel, Bridgeport Style 'Swivel
Type' Head, Knee Lock, Swivel Type Overarm.

SPECIFICATIONS:
Table Dimensions (Overall, W x L)......................... 9" x 49"
Table Working Surface, W X L.............................. 9" x 49"
Longitudinal Table Travel (X-Axis)........................ 32"
Cross Saddle Travel (Y-Axis).............................. 12"
Vertical Knee Travel (W-Axis)............................. 16"
Vertical Head Travel (Z-Axis)............................. 5"
Spindle Taper............................................. R-8
Spindle Speeds............................................ 50-4200 RPM
Drive Type................................................ Variable
Motor (Spindle)........................................... 3 HP
Electrics................................................. 220/440/3/60
Approximate Machine Dimensions............................ 60" x 66"
Approximate Machine Height................................ 78"
Approximate Machine Weight................................ 2300 lbs.

Condition: Appears to be in Excellent Condition.
