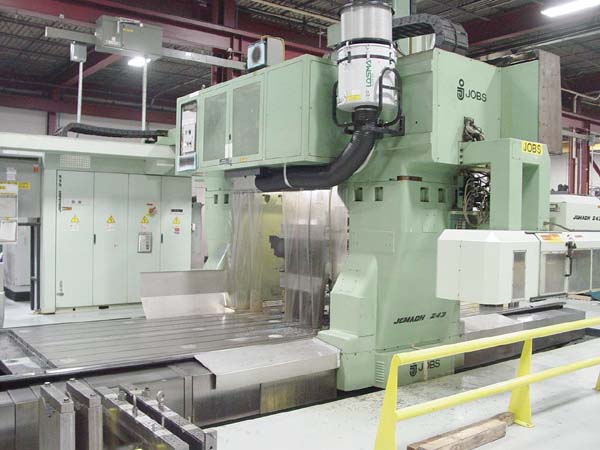

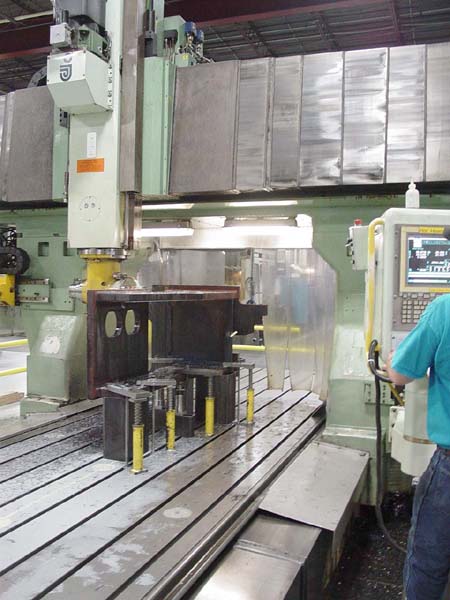

EQUIPPED WITH:

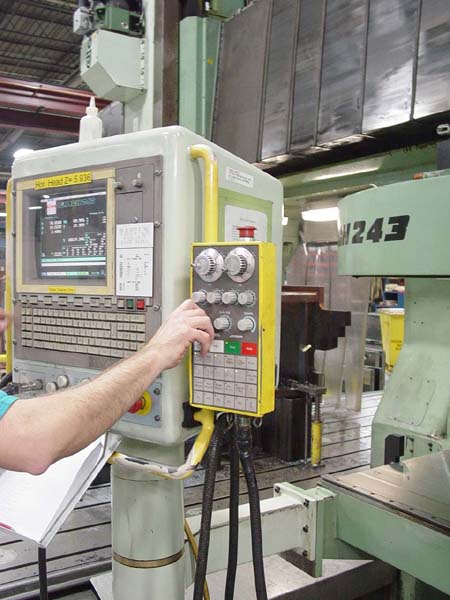

Jobs Jo'Cam CNC Control, Color Display, Graphics, Conversational
Programming, Multiple Part Program Storage, Self Diagnostics,
40 HP Heavy Duty Geared Spindle with Cat-50 Taper, Automatic Head
Changer, 90 Degree Head, 32 Station Automatic Tool Changer,
Coolant System and Chip Conveyor.



CATALOGUE SPECIFICATIONS:

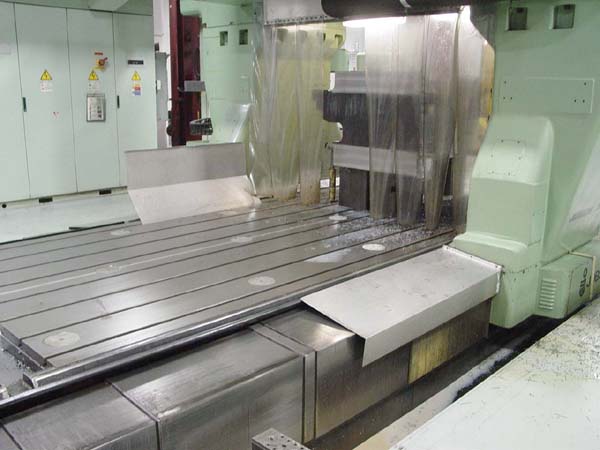

Working Surface........................................... 77.13" x 255"
Table Load Capacity................................... 36,000 lbs
Longitudinal Travel (X-Axis).......................... 177"
Cross Travel Including ATC Position (Y-Axis).......... 106"
Vertical Travel (Z-Axis).............................. 49"
Distance Between Columns.............................. 80"
Rapid Traverse Rate (X & Y-Axes)...................... 787 IPM
Rapid Traverse Rate (Z-Axis).......................... 360 IPM
Tool Storage Capacity ................................ 32
Spindle Horsepower.................................... 40 HP
Spindle Speeds ....................................... 5 - 4000 RPM
Spindle Taper......................................... #50 CAT
Electrics............................................. 460/3/60
Approximate Machine Dimensions........................ 48'3" x 28'2"
Approximate Machine Height............................ 268"
Approximate Machine Weight............................ 110,000 LBS



CONDITION: Appears to be in Excellent Condition !
