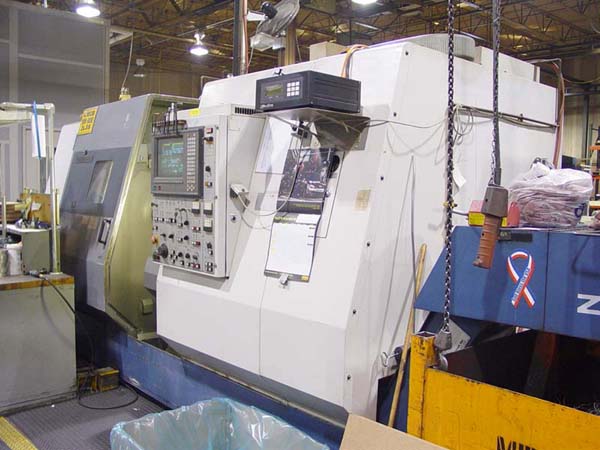

MORI SEIKI TWIN TURRET CNC TURNING CENTER With
LIVE TOOLING
Model ZL-35MC/750, S/N 25, New 1995
Stock # K13844
EQUIPPED WITH:

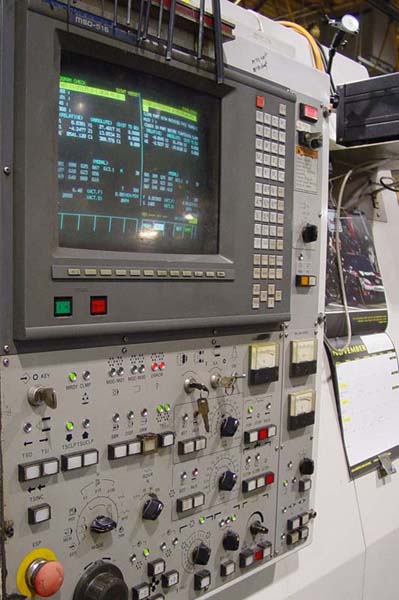

Mori Seiki MSD-516 (Fanuc 16-TTA) CNC Control, 5 Controlled Axis,
Simultaneous Upper and Lower Turret Programming, RS-232 Port, Graphics,
Multiple Part Program Storage, Macros, Full Contouring C-Axis Spindle,
Live Tooling in Upper Turret, Kitagawa B-212 12" 3-Jaw Power Chuck,

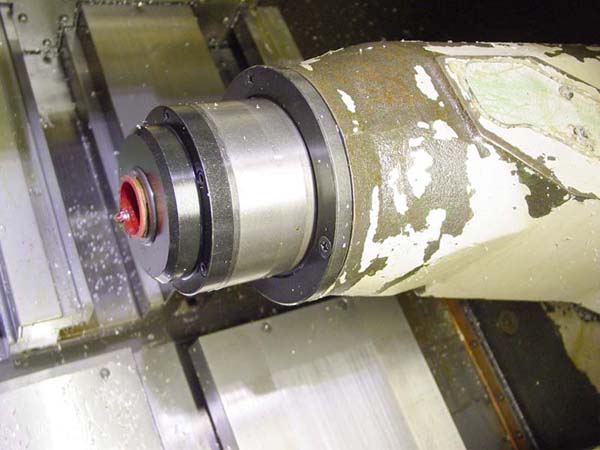

Tailstock, Dual Turrets, Chip Conveyor, Coolant System.
CATALOGUE SPECIFICATIONS:
Max Swing Over Bed..................................... 23.6"
Max Swing Over Cross Slide............................. 16.7"
Maximum Turning Diameter............................... 15.4"
Maximum Length Between Centers......................... 35.04"
Standard Chuck Size.................................... 12"
Bar Capacity........................................... "
Cross Travel Turret 1 (X1-Axis)........................ 8.9"
Longitudinal Travel Turret 1 (Z1-Axis)................. 33.7"
Cross Travel Turret 2 (X2-Axis)........................ 8.3"
Longitudinal Travel Turret 2 (Z2-Axis)................. 33.7"
Rapid Traverse Rate (X1, X2 Axes)...................... 472 IPM
Rapid Traverse Rate (Z1, Z2 Axes)...................... 590 IPM
Live Tool Positions on Upper Turret.................... 10
Number of Turrets...................................... 2
Tool Positions Turret 1................................ 10
Tool Positions Turret 2................................ 10
Spindle Bore........................................... 4.1"
Spindle Nose........................................... A2-8
Spindle Speed Range.................................... 9- 2500 RPM
Spindle Horsepower..................................... 40 HP
Approximate Machine Dimensions......................... 205" x 79"
Approximate Machine Height............................. 90"
Approximate Machine Weight............................. 25,000 LBS
CONDITION: From a Large Aerospace Facility. Machine Appears to be
in Excellent Condition!
