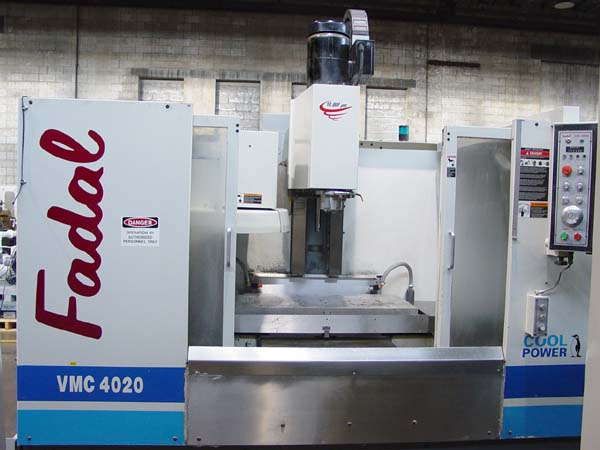

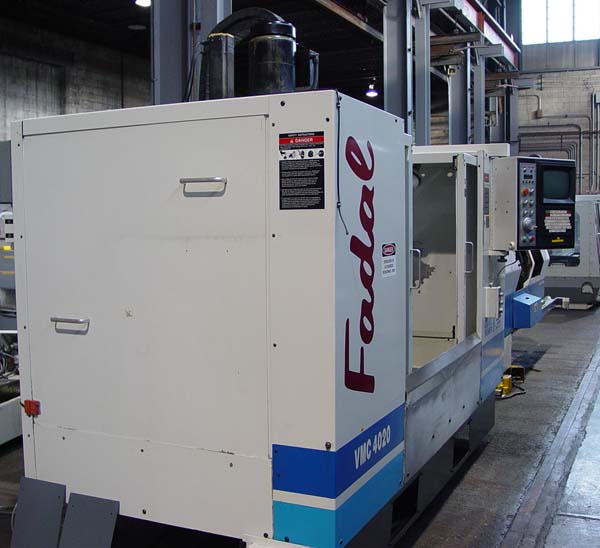

FADAL CNC VERTICAL MACHINING CENTER
                    Model 4020HT, S/N 9902382, New 12/1999
                                 Stock # K13845



EQUIPPED WITH:
Fadal 88HS CNC Control, RS-232 Port, Max Program Storage 4 Meg Multiple
Part Program Storage, High Speed CPU, Graphics, Self Diagnostics,

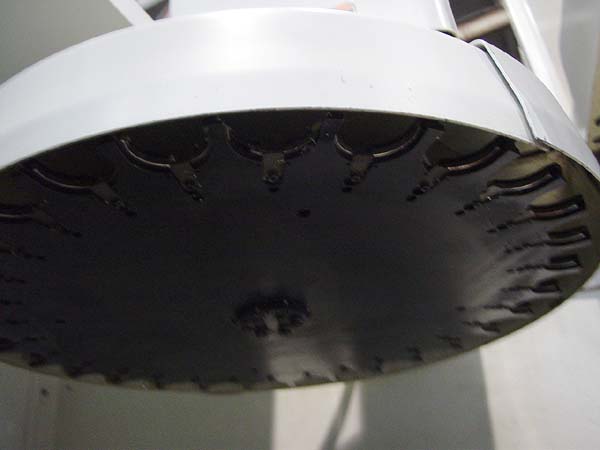

Thru Spindle Coolant, 30 Station Automatic Tool Changer, Manual Pulse
Generator, Axis Error Compensation, Cutter Compensation, Full
Enclosure, Hydro Sweep Coolant and Chip Conveyor System.



CATALOGUE SPECIFICATIONS:
Table Working Surface................................. 48" x 20"
Table Load Capacity................................... 1,500 LBS
Longitudinal Travel (X-Axis).......................... 40"
Cross Travel (Y-Axis)................................. 20"
Vertical Travel (Z-Axis).............................. 20"
Spindle Nose to Table................................. 4" - 24"
Rapid Traverse Rate (X & Y-Axes)...................... 700 IPM
Rapid Traverse Rate (Z-Axis).......................... 600 IPM
Tool Storage Capacity................................. 30
Spindle Horsepower.................................... 15 HP
Spindle Speeds Range.................................. 100 - 10,000 RPM
Spindle Taper......................................... #40 Cat
Electrics............................................. 460/3/60
Approximate Machine Dimensions........................ 87" x 116"
Approximate Machine Height............................ 95"
Approximate Machine Weight............................ 10,500 LBS



CONDITION: From a large Communications Company.

                        Appears to be in Excellent Condition !
