42"

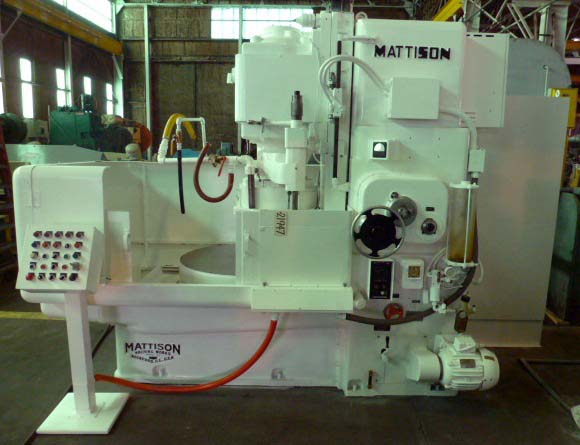

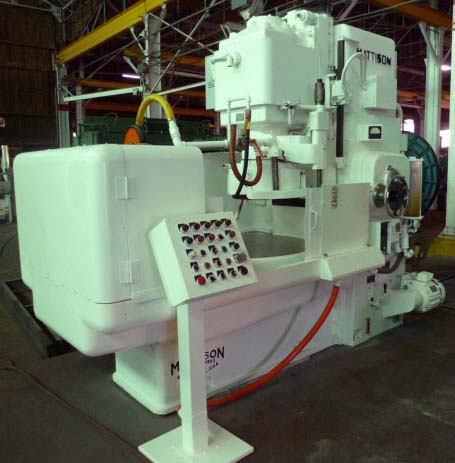

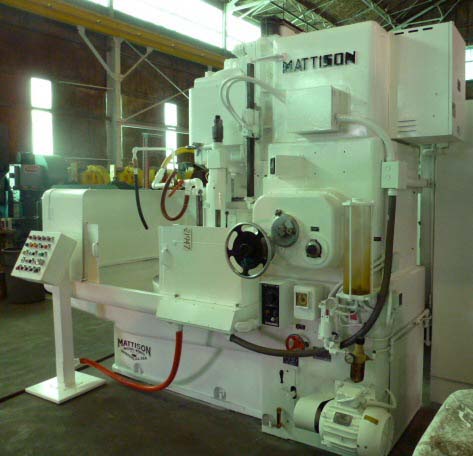

MATTISON ROTARY SURFACE GRINDER
MODEL: 24-42
SERIAL NUMBER: 24-413
GENERAL SPECIFICATIONS

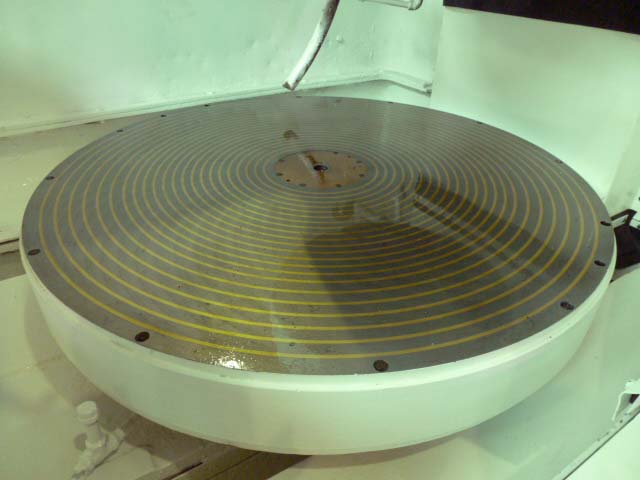

Magnetic Chuck and Table Diameter: 42"
Maximum Swing Inside Guards: 48"

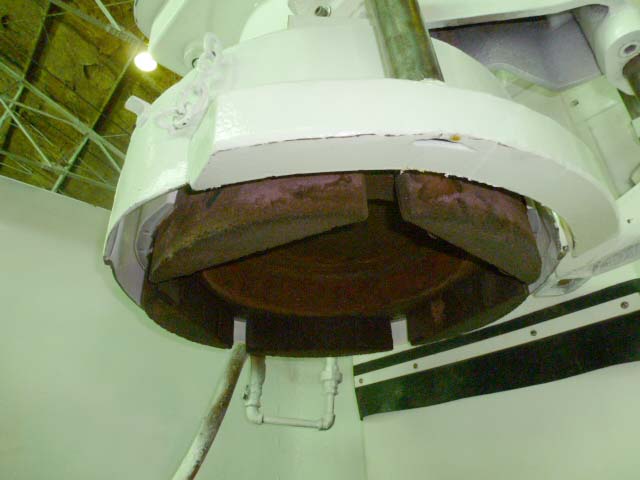

Wheel Diameter, Segmental Type: 22"
Work Height: 24"
Table Speeds: 8, 11, 18, 32 RPM
Wheel-Head Downfeed: .005 to .165 IPM
EQUIPPED WITH
75 HP Wheel Motor
External Coolant System: Hydromation Model HV-4, S/N: 4-4811

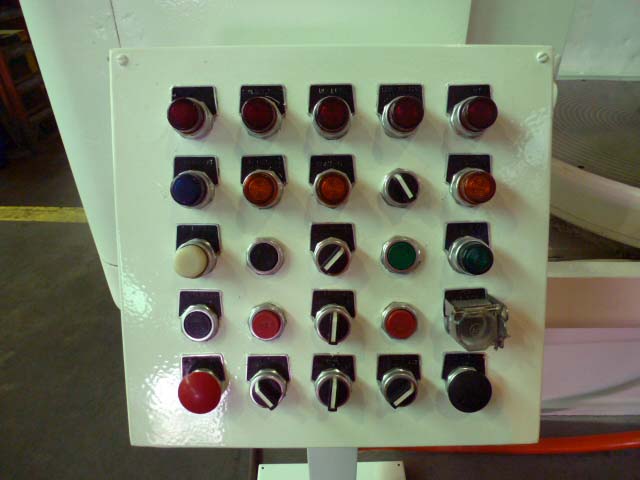

Pedestal Mounted Controls

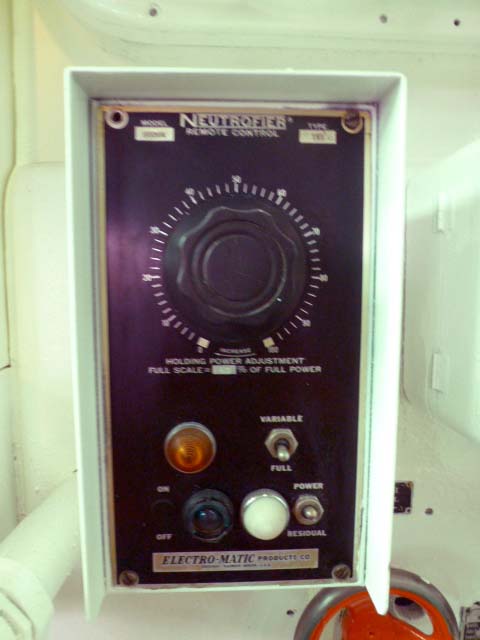

Electro-Matic Variable Hold Chuck Control
Trabon Lubrication
Swing-Arm Wheel Dresser
Load Meter
Cleaned and Painted
Approximate Weight: 22,000 Lbs.
