KITAKO VT4-350 CNC 4-SPINDLE CNC VERTICAL TURNING CENTER

Stock Number K13859

Kitako VT4-350 4 Spindle CNC Turning Center CNC Vertical Lathe for sale

Kitako VT4-350 4 Spindle CNC Turning Center CNC Vertical Lathe for sale

Kitako VT4-350 4 Spindle CNC Turning Center CNC Vertical Lathe for sale

Kitako VT4-350 4 Spindle CNC Turning Center CNC Vertical Lathe for sale

Kitako VT4-350 4 Spindle CNC Turning Center CNC Vertical Lathe for sale

Kitako VT4-350 4 Spindle CNC Turning Center CNC Vertical Lathe for sale

Kitako VT4-350 4 Spindle CNC Turning Center CNC Vertical Lathe for sale

Kitako VT4-350 4 Spindle CNC Turning Center CNC Vertical Lathe for sale

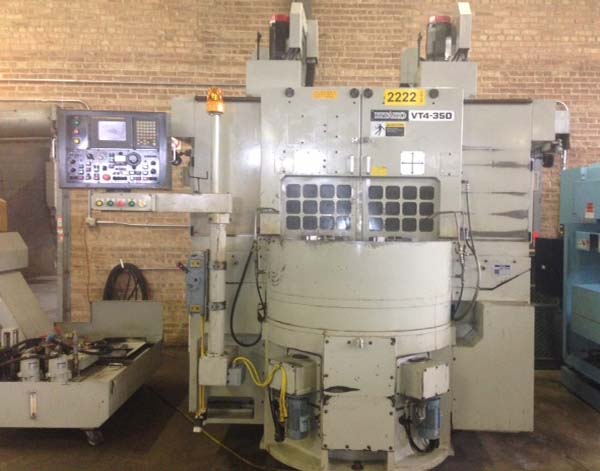

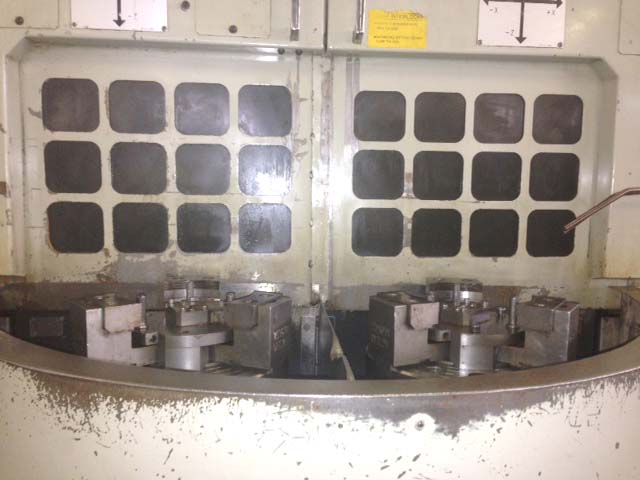

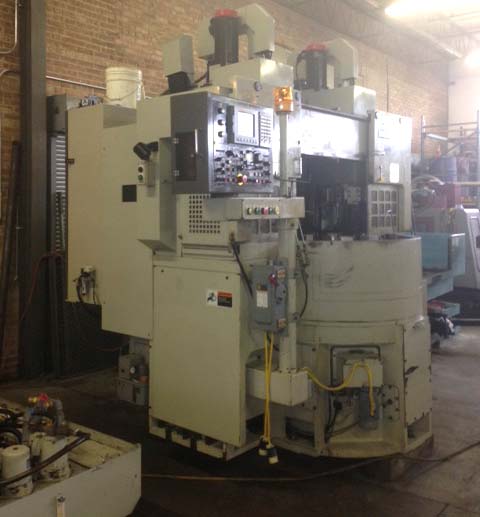

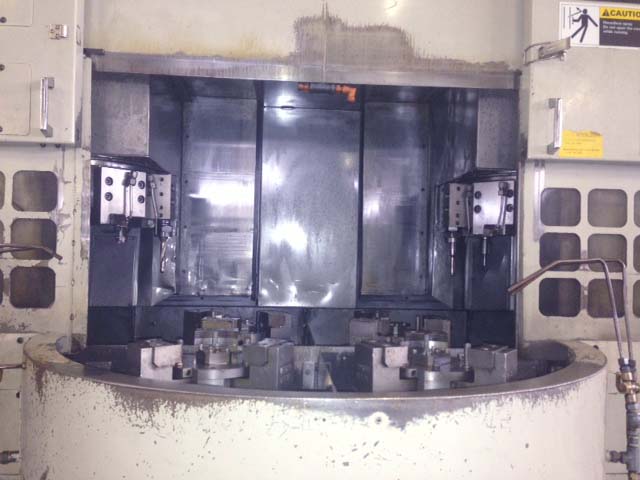

ACTUAL PHOTOS

            KITAKO 4-SPINDLE CNC VERTICAL TURNING CENTER
                     Model VT4-350, New 1999, S/N 8115
                                       Stock# K13859



EQUIPPED WITH:

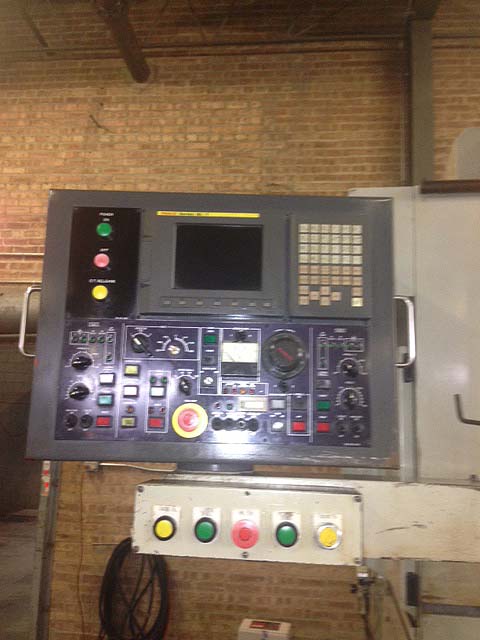

Fanuc 18TB CNC Control, RS-232 Port, Background Edit, (4) Spindle
Design with (2) in the Machining Area and (2) in Load Position, Separate
Drive for Each Spindle, (4) 15" 3-Jaw Power Chucks, Hydraulic
Actuators on all (4) Spindles For Chucks or Hydraulic Clamping.
Spindle Orientation, 6 Position Tool Turrets, Chip Conveyor and Coolant
System, Tooling Package.


CATALOGUE SPECIFICATIONS:
Number of Spindles...................................... 4
Chuck Size.............................................. 12"
Max Turning Diameter with Standard Tools................ 13.8"
Max Turning Length...................................... 7.9"
X-Axis Stroke........................................... 11.81"
Z-Axis Stroke........................................... 17.72"
Rapid Traverse X-Axis................................... 787 IPM
Rapid Traverse Z-Axis................................... 945 IPM
Spindle Nose............................................ A2-8
Spindle Speeds.......................................... 25 - 3200 RPM
Spindle Motor........................................... 25 HP
Approximate Machine Dimensions.......................... 106" x 98"
Approximate Machine Height.............................. 115"
Approximate Machine Weight.............................. 27,500 LBS


Condition: Only 8900 Hours Appears To Be in Excellent Condition!
