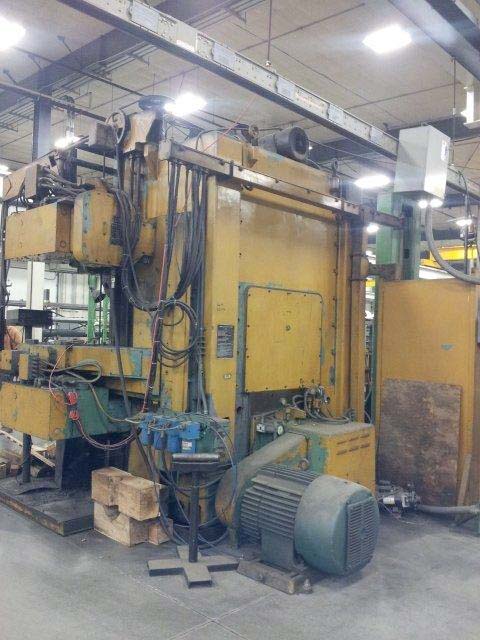

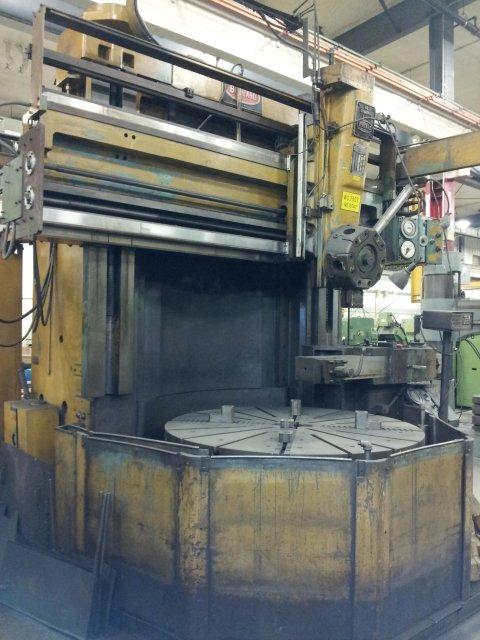

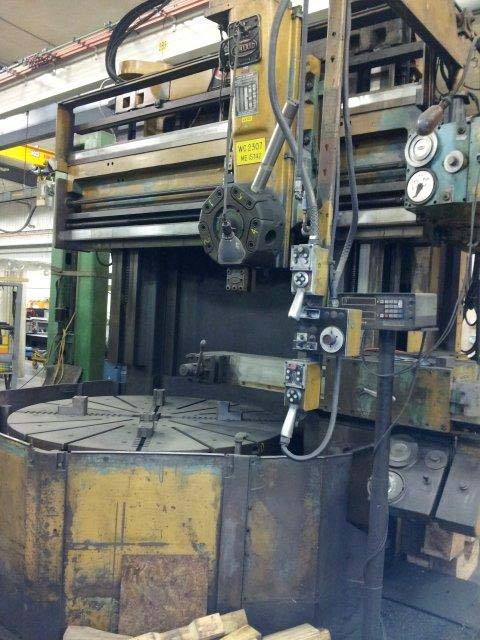

66" BULLARD VERTICAL BORING MILL
                  Model Dynatrol, New 1966, Stock# K13861

EQUIPPED WITH:
Full Pendant Control, 66" 4-Jaw Chuck, T.D.A. Attachment on Turret Head,
Digital Read Outs, Hardened and Ground Chrome Strips ( Cross Rail, Turret
Swivel and Column ), Hydraulic Rail Binders, Five Sided Turret Head
with Power Indexing, Side Head with Four Sided Manual Indexing, Variable
Speed Rapid Traverse, Automatic Lube System.



CATALOGUE SPECIFICATIONS:
Chuck Diameter........................................ 66"
Maximum Swing with Side Head Above Table.............. 72"
Maximum Swing with Side Head Below Table.............. 78"
Maximum Height Under Rail............................. 60"
Vertical Travel of Cross Rail......................... 50"
Max Height Under Turret Face.......................... 71-3/4"
Vertical Travel of Turret Head........................ 30-3/4"
Vertical Travel of Side Head.......................... 58-3/4"
Horizontal Travel Turret Head......................... 45-1/8"
Horizontal Travel of Side Head........................ 31-3/4"
Feeds, Range (Infinitely Variable).................... .001-.250 Per Rev
Chuck Speeds, Range (20).............................. 5 - 167 RPM
Motor, Horsepower/RPM................................. 75 HP
Electrics............................................. 460/3/60
Approximate Machine Dimensions........................ 186" x 155"
Approximate Machine Height (Ram Up & Rail Up)......... 229
Approximate Machine Weight............................ 98,000 LBS



CONDITION: Appears to be in Very Good Condition!
