NORTHWOOD 120' x 120' 4 HEAD TWIN TABLE CNC VERTICAL ROUTER
                         Model CS-2510, New 2010
                               Stock # K13862



EQUIPPED WITH:

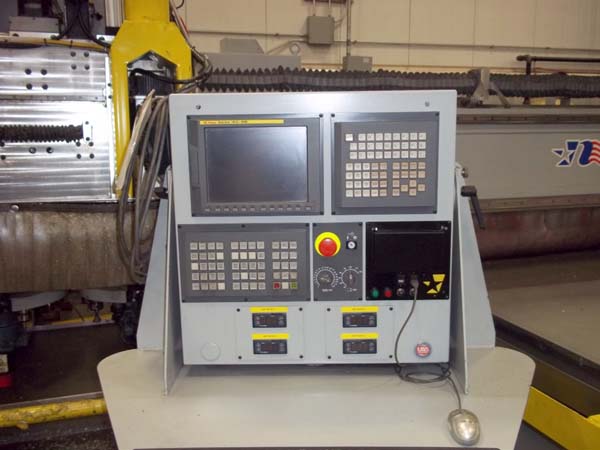

FANUC 160i CNC Control with Hand Held Pendent, RS-232 Port,

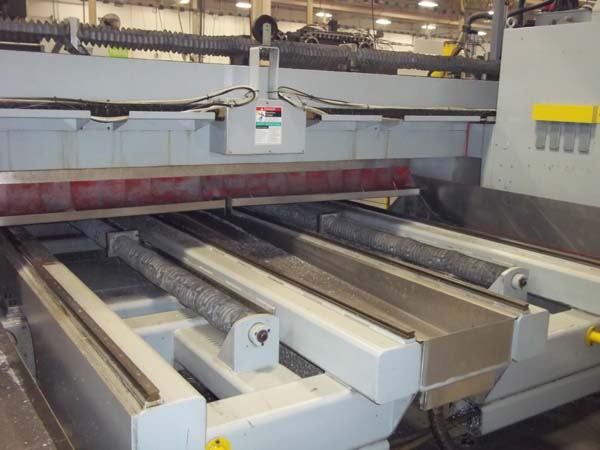

Multiple Part Program Storage, (2) 60" x 120" Independent Work Tables

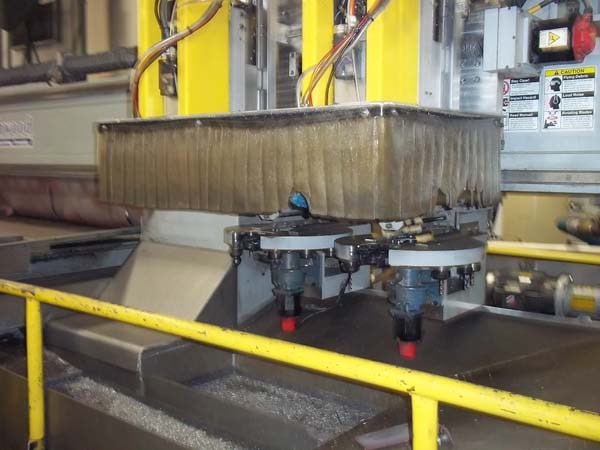

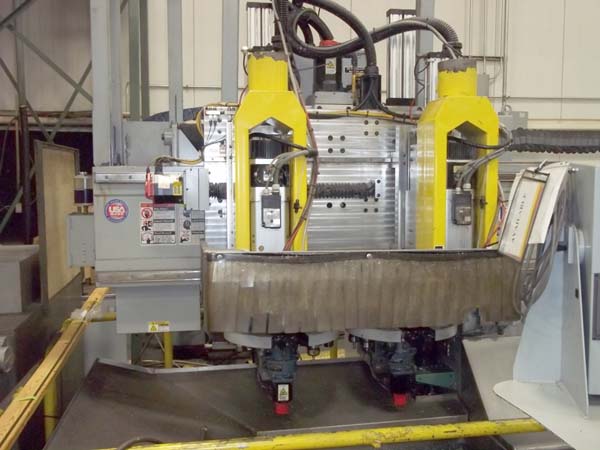

that can be used Together for a 120" x 120" Capacity, (4) Router Heads
Mounted on (2) Independent Slides, (4) 18 HP 20,000 RPM Variable Speed

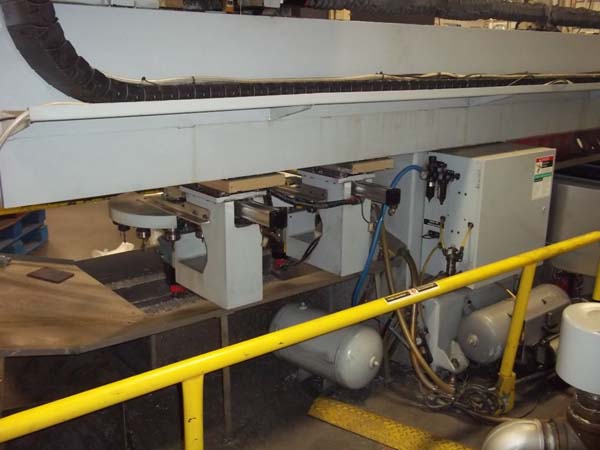

Spindle, (4) 12 Station Tool Changers, Vacuum Table with Vacuum Pump.



CATALOGUE SPECIFICATIONS:
Table Total Surface................................ 120" x 120"
Each Table ........................................... 60" x 120"
Table Load Capacity.............................. 4,000 LBS
Longitudinal Travel (X-Axis)..................... 120"
Cross Travel (Y-Axis)............................. 250"
Vertical Travel (Z-Axis)........................... 14"
Traverse Rate ....................................... 3150 IPM
Spindle Horsepower............................... 18 HP
MAX Spindle Speeds ............................ 20000 RPM
Spindle Taper........................................ HSK-63
Electrics............................................... 460/3/60
Approximate Machine Dimensions.......... 17' x 30'7"
Approximate Machine Height.................. 92"
Approximate Machine Weight................. 16,000 LBS



CONDITION: Used to cut Aluminum Aerospace Parts. Appears to be
                       in Excellent Condition !
