WALDRICH 5-SIDED CNC VERTICAL BRIDGE MILL Model 3.15M

Stock Number K13895

Waldrich 5-Sided Bridge Mill 3.15M CNC Planer Mill CNC Vertical Machining Center for sale

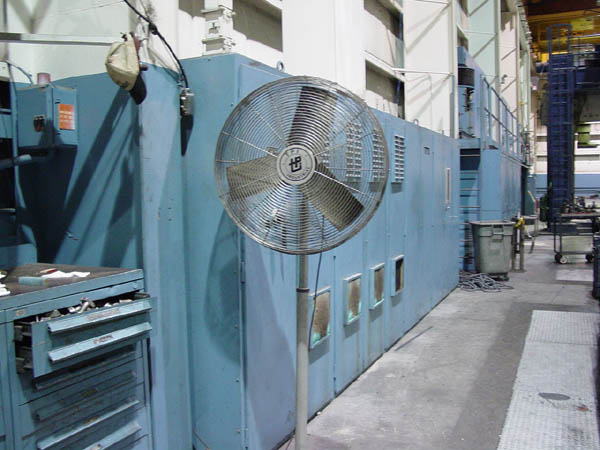

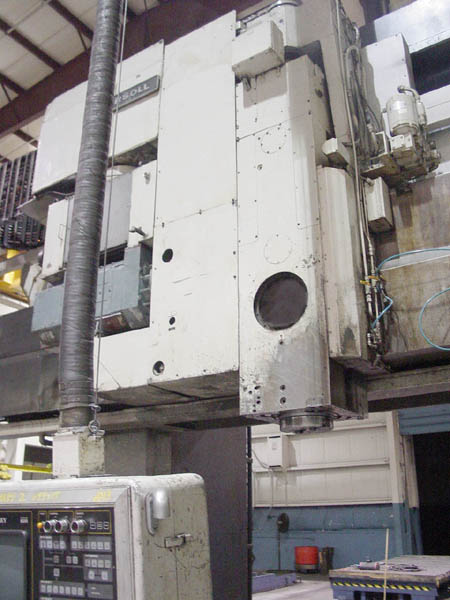

ACTUAL PHOTOS

WALDRICH 5-SIDED VERTICAL BRIDGE MILL
                 Model 3.15M, New 1982
                       Stock# K13448


EQUIPPED WITH:
Allen Bradley 8200 CNC Control, Full Pendent Control, Hard Ways, (1) Extended
Right Angle Head, (1) Standard Reach Right Angle Head Attachment, Split Table Design.

CATALOGUE SPECIFICATIONS:
Table Working Surface Overall......................... 360" x 114"
Table Surface Front Table............................. 180" x 114"
Table Surface Rear Table.............................. 180" x 114"
Table Load Capacity................................... 140,000 lbs
Longitudinal Travel (X-Axis).......................... 360"
Cross Travel (Y-Axis)................................. 157"
Vertical Travel Cross Rail (Z-Axis)................... 106"
Vertical Travel Quill (W-Axis)........................ 31.5"
Maximum Height Under Cross Rail....................... 120"
Distance Between Columns.............................. 124"
Spindle Horsepower(Each Head)......................... 125 HP
Spindle Speeds Range.................................. 6-800 RPM
Spindle Taper......................................... #50 Taper
Electrics............................................. 460/3/60
Approximate Machine Weight............................ 200,000 lbs

CONDITION: Appears to be in Excellent Condition !
