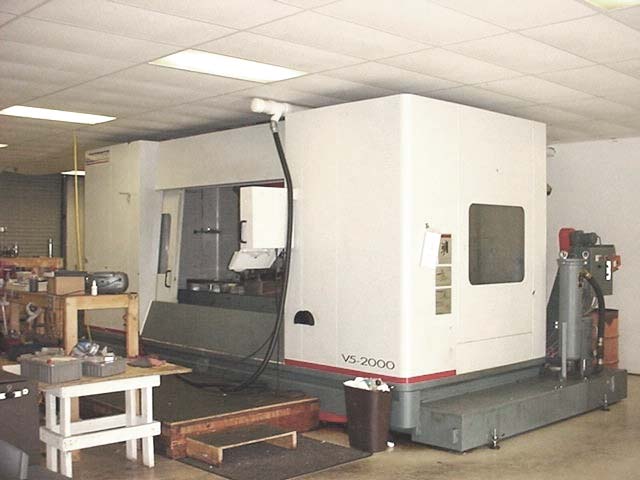

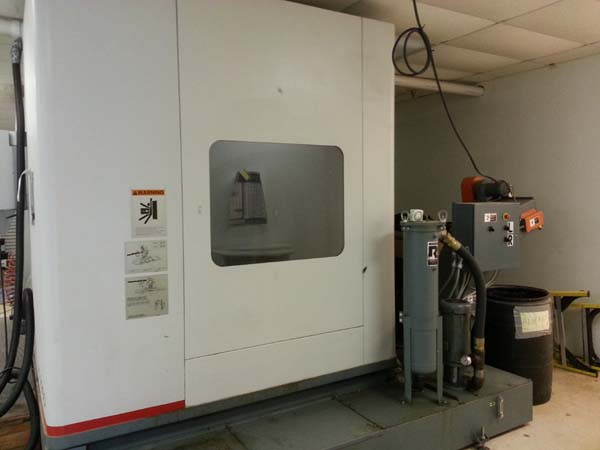

CINCINNATI 5 AXIS CNC VERTICAL PROFILING/CONTOURING MACHINING CENTER
                     Model Lancer V5-2000, New 1999
                              Stock# K13896

EQUIPPED WITH:

Acramatic 2100 CNC 5-Axis Simultaneous Contouring Control with Touch
Screen Programming, 15,000 RPM Spindle, 21 Station Automatic Tool
Changer, Coolant System, Chip Conveyors..



CATALOGUE SPECIFICATIONS:

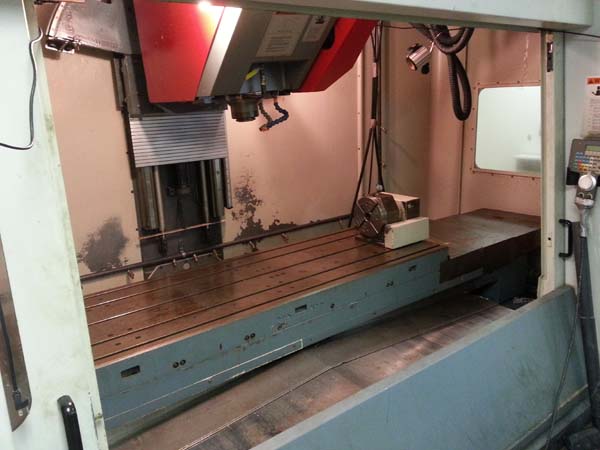

Table Working Surface, W x L............................ 90" x 30"
Table Load Capacity..................................... 6600 LBS
A Axis Cross Plane Spindle Carrier(+/- 40 Deg).......... 80 Degrees
B Axis Longitudinal Plane Spindle Carrier(+/- 40 Deg)... 80 Degrees
X Axis Table Longitudinal Travel........................ 80"
Y Axis Saddle Cross Travel.............................. 30"
Z Axis Spindle Carrier Vertical Travel.................. 30"
Spindle Speeds, Infinite Range.......................... 10 to 15000 RPM
X, Y, & Z Axis Feeds, Range............................. 0 to 590 IPM
Rapid Travers Rate (X, Y, & Z).......................... 945 IPM
Rapid Traverse Rate (A & B)............................. 2400 DPM
Spindle Motor........................................... 26 HP
Tool Storage Capacity................................... 21
Spindle Taper........................................... HSK-63
Approximate Machine Dimensions.......................... 280" x 165"
Approximate Machine Height.............................. 140"
Approximate Machine Weight.............................. 35,350 LBS

CONDITION:  Machine Appears to Be in Excellent Condition !
