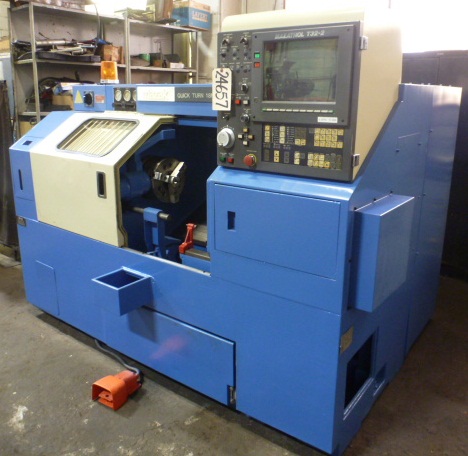

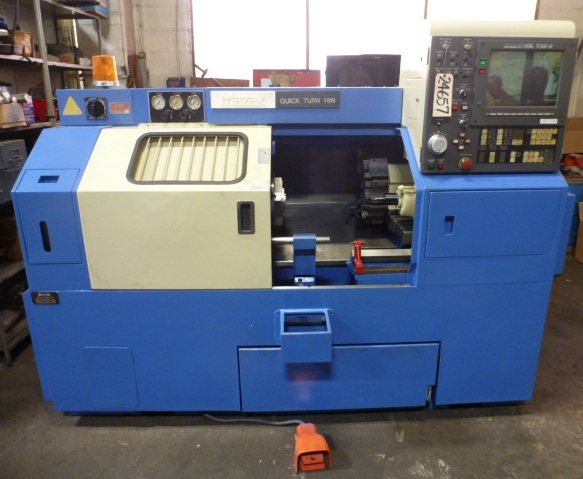

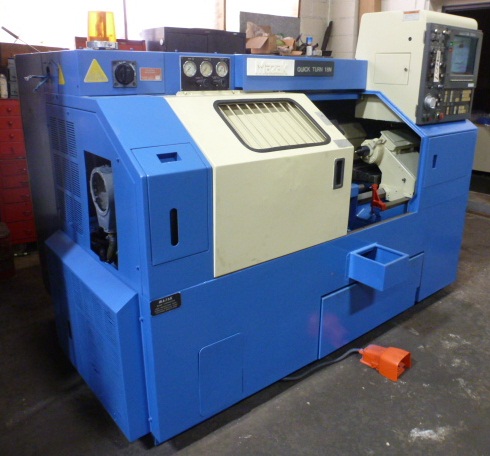

MAZAK QT-18N CNC TURNING CENTER
Model Quick Turn 18N, New 1990

Stock# K13900



EQUIPPED WITH
Mazatrol T32-2 CNC Control, Mazatrol Conversational Programming,
Programmable Tailstock, Tool Eye (Presetter),
10" 3-Jaw Hydraulic Chuck, Chip Conveyor
Coolant System,

CATALOGUE  SPECIFICATIONS
Maximum Swing Over Carriage:........ 17.32"
Maximum Turning Diameter:........... 11.81"
Maximum Machining Length:......... 19.69"
X-Axis Travel:.............................. 7.09"
Z-Axis Travel:......................... 20.08"
Spindle Speeds:................... 36-3600 RPM
Spindle Bore:............................ 3.15"
Maximum Diameter Bar Capacity:......... 2.75"
Spindle Nose:................. A2-8
Rapid Traverse:...................... 1180 IPM
Tailstock Quill Diameter:.................. 3.15"
Tailstock Taper:............................... No. 4 M.T.
 Approximate Weight:......................... 9500 Lbs.



CONDITION: Appears to be in very good condition !
