MAZAK SLANT TURN 50N X 2000U CNC TURNING CENTER
 New April 1998, Stock# K13901


Equipped With;
Mazatrol T-Plus CNC control with conversational programming
7.1" Spindle Bore
Front 24? four jaw manual chuck
Rear 18? four jaw manual chuck
SMW hydraulic steady rest

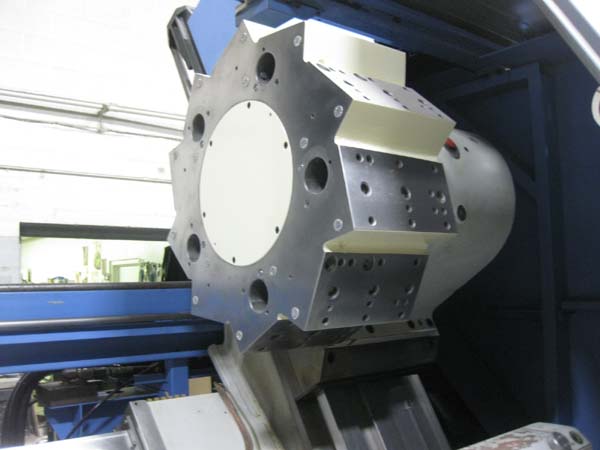

decagonal drum tool turret with 10 I.D. and O.D. tools and 5 I.D. tools
Full automatic NC tailstock

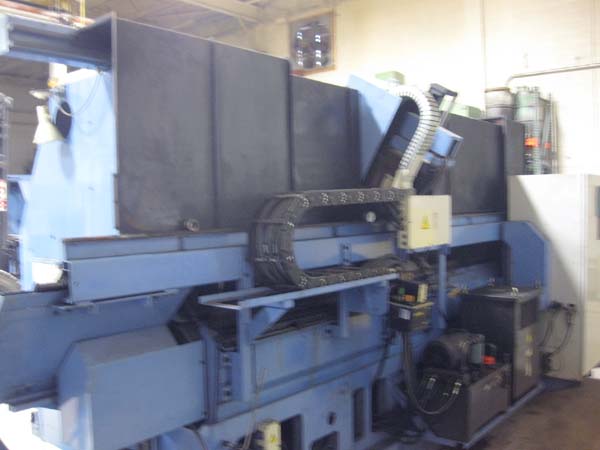

Coolant tank and chip conveyor

Catalog Specifications:
Maximum swing....................... 31.7?
Swing over carriage.................. 22?
Maximum cutting diameter............. 28?
Distance between centers....................... 81?
X-Axis stroke..................................... 22.6?
Z-Axis stroke........................................ 82?
Spindle speed range................  2 to 750 rpm (3 to 1,000 rpm)
Number of spindle speed ranges...................... 3
Spindle nose...................................... A2-15
Spindle bore...................................... 7.1? diameter
Spindle drive motor................................... 50 HP
Tailstock quill stroke and thrust.................  5.1?; 5,500 pounds
Machine weight................................ 30,800 pounds

Condition: Appears to be in Very Good Condition !
