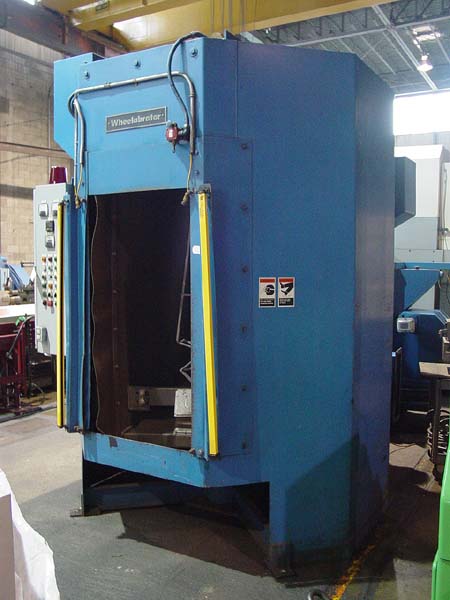

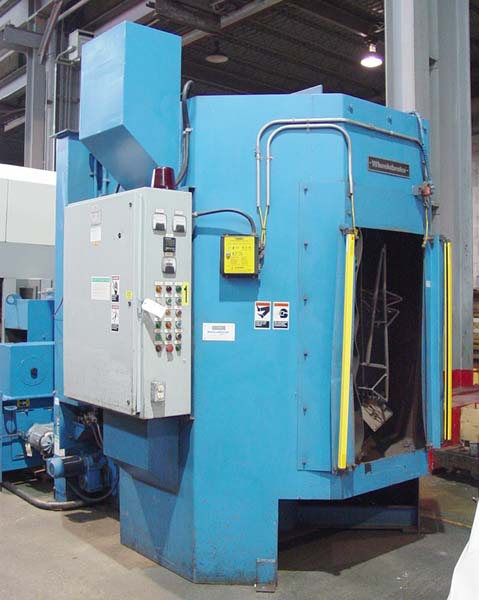

WHEELABRATOR 4 CHAMBER HANGER SPINNER SHOT BLASTER
Model WS 4/210, S/N 2895, New 2003
Stock# K13902
EQUIPPED WITH:

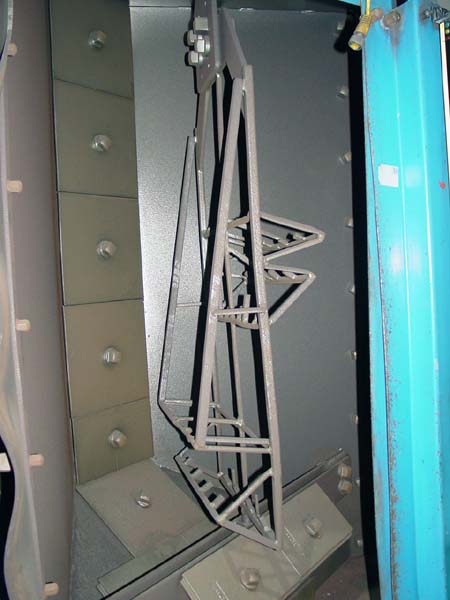

(4) Blast Chambers Mounted on a Rotary Carousel, Each Chamber has a
Rotating Part Hanger/Basket, Each Chamber Rotates in Front of (2)
20 HP Shot Blasting Heads, Shot Storage Hopper, 13" TruBlast Shot
Blast Wheels, Shot Separator, Extra Hangers, Dust Collector.
CATALOGUE SPECIFICATIONS:
Size of Each Blast Chamber...................... 29" x 25" x 40"
Maximum Load Capacity Each Chamber.............. 1500 lbs
Number of Blasting Heads........................ 2
Horse Power Of Boasting Heads................... 20 HP
Shot Hooper Capacity............................ 2000 lbs
Electrics....................................... 440/3/60 50amps
Approximate Machine Dimensions ................. 138" x 96"
Approximate Machine Height ..................... 186"
Approximate Dust Collector Size................. 61" x 61"
Approximate Dust Collector Height............... 185"
Approximate Machine Weigh....................... 20,000 LBS
CONDITION: Machine Appears to be in Very Good Condition!
