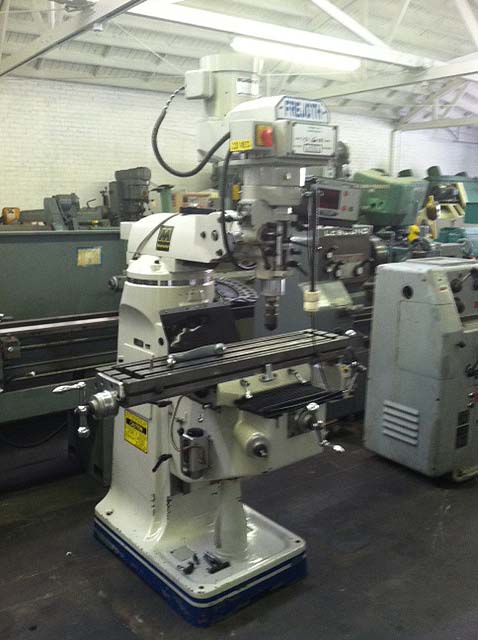

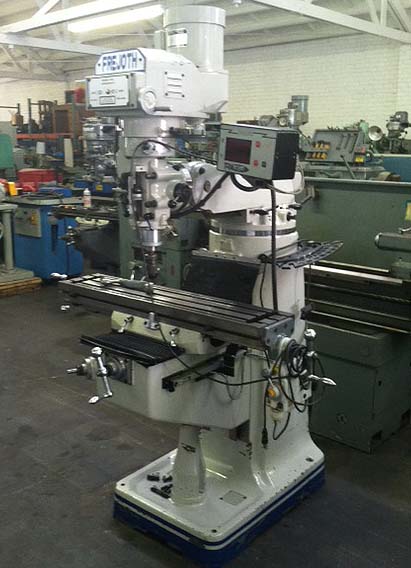

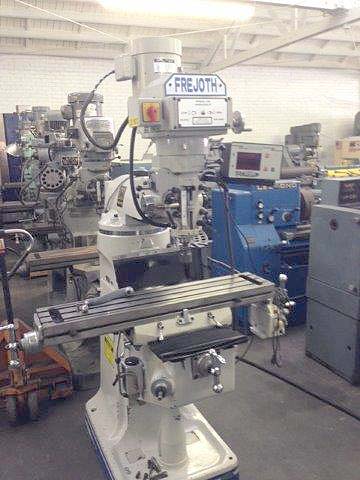

FREJOTH BRIDGEPORT STYLE VERTICAL MILL
                         New 2005, Stock# K13923



EQUIPPED WITH:

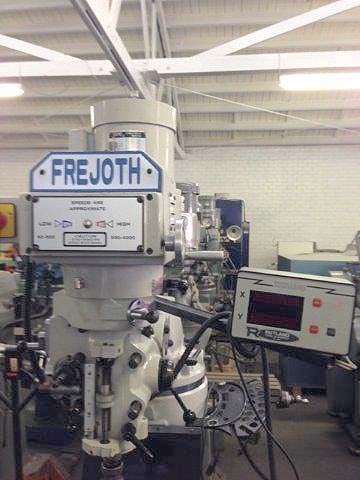

3 HP Variable Speed Head, Sterling 2-Axis Digital Read Out,
Best Way X-Axis Power Feed Unit, Swivel Type Dovetail Overarm,
One shot Lube.

SPECIFICATIONS:

Table Dimensions (Overall, W x L)......................... 9" x 42"
Table Working Surface, W X L.............................. 9" x 42"
Longitudinal Table Travel (X-Axis)........................ 30"
Cross Saddle Travel (Y-Axis).............................. 12-1/2"
Vertical Knee Travel (W-Axis)............................. 16"
Vertical Head Travel (Z-Axis)............................. 5"
Spindle Taper............................................. R-8
Ram Travel................................................ 12-14"
Spindle Speeds (8), Range................................. 60-4200 RPM
Drive Type................................................ Varable Speed
Motor (Spindle)........................................... 3 HP
Electrics................................................. 220/440/3/60
Approximate Machine Dimensions............................ 60" x 48"
Approximate Machine Height................................ 78"
Approximate Machine Weight................................ 2200 lbs.



CONDITION: Appears to be in Excellent Condition !
