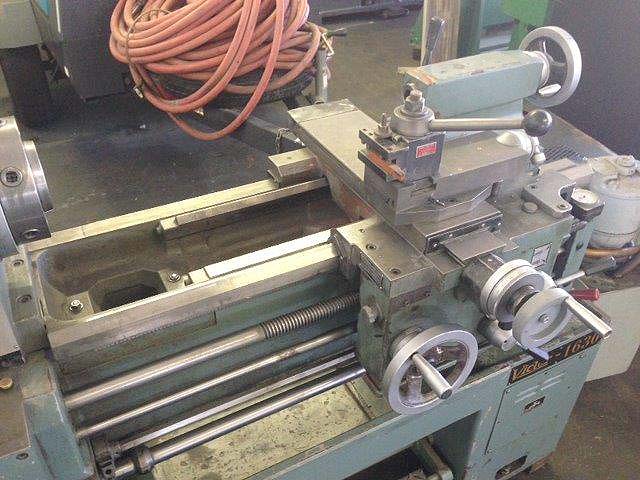

16" X 30" VICTOR ENGINE LATHE
                          Model 1500, Stock# K13924



EQUIPPED WITH:

Hard and Ground Steel Bed Ways, Thread Chasing Dial, Inch/Metric
Threading, D1-4 Cam Lock Spindle, Aloris Tool Post, Removable Coolant
and Chip Pan.

CATALOGUE SPECIFICATIONS:

Max. Swing Over Bed Ways............................. 16"
Max. Swing Over Cross Slide.......................... 8-1/2"
Max. Distance Between Centers........................ 30"
Cross Slide Cross Feed Travel........................ 8"
Hole Thru Spindle.................................... 1-9/16"
Spindle Nose Internal Taper.......................... #5 MT
Tailstock, Spindle Travel............................ 5"
Tailstock, Spindle Diameter.......................... 2"
Tailstock, Spindle Taper............................. #4 MT
Spindle Speeds Variable Speed........................ 65 to 1800 RPM
Threading Leads, Inch ............................... 4 to 56 TPI
Threading Leads, Metric ............................. 0.25 - 6 MM
Main Motor, Horsepower/RPM .......................... 5 HP
Electrics ........................................... 230/460/3/60
Approximate Machine Dimensions ...................... 71" x 38"
Approximate Machine Height .......................... 54"
Approximate Machine Weight........................... 3200 LBS



CONDITION: Machine Appears to be in Very Good Condition !
