EQUIPPED WITH:
Siemens Acramatic 2100di CNC Control with Color CRT, Touch Screen
Programming, Full 5-Axis Simultaneous Control, 5-Axis Tool Length
and
Cutter Comp, Multiple Part Program Storage, Ethernet, Hand Held
Pendent, Automatic Pallet Changer, Load/Unload Station, Two 39"
Diameter
Pallets, Full Contouring 4th-Axis Pallet Rotation, Full Contouring

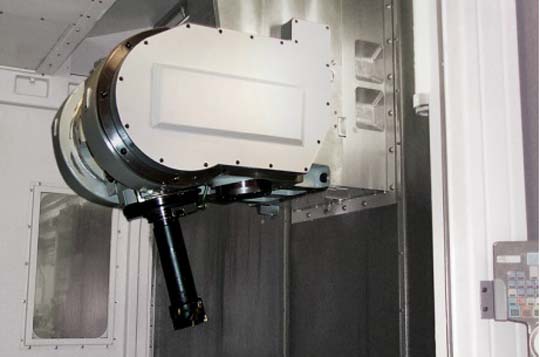

5th-Axis Spindle Tilt, Tool Setting Probe, Torque Controlled
Machining,
Pallet Can Rotate at 700 RPM for Turning Applications, 90 Station
Automatic Tool Changer, Chip Conveyor, Coolant System.
CATALOGUE SPECIFICATIONS:
Longitudinal Table Travel (X-Axis)................... 61"
Vertical Travel (Y-Axis)............................. 47.8"
Head Cross Travel (Z-Axis)........................... 47.2"
Spindle Tilt (A-Axis)................................ 180 Deg
Pallet Rotation (B-Axis)............................. 360 Deg
Max Turning Diameter................................. 51.2"
Pallet Dimensions....................................
39.4"Diameter
Number of Pallets.................................... 2
Pallet Rotational Speed (Turning).................... 1 - 700 RPM
Rotational Torque.................................... 2280 FT/Lbs
HP of Turning Spindle................................ 57 HP
Feed Rate, All Axes.................................. .1-945 IPM
Rapid Traverse, All Axes............................. 945 IPM
Milling Spindle Horsepower........................... 40 HP
Spindle Speed Range.................................. 20-8000 RPM
Spindle Taper........................................ #50 CAT
Number of Tool Positions............................. 90
Electrics ........................................... 460/3/60
Approximate Machine Dimensions....................... 269" x 249"
Approximate Machine Height........................... 141"
Approximate Machine Weight........................... 64,000 LBS
CONDITION: From a Large Aerospace Facility. Appears to be in
Excellent Condition !
