EQUIPPED WITH:

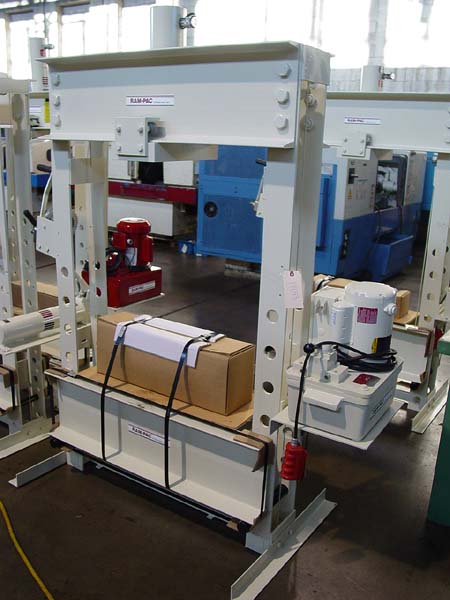

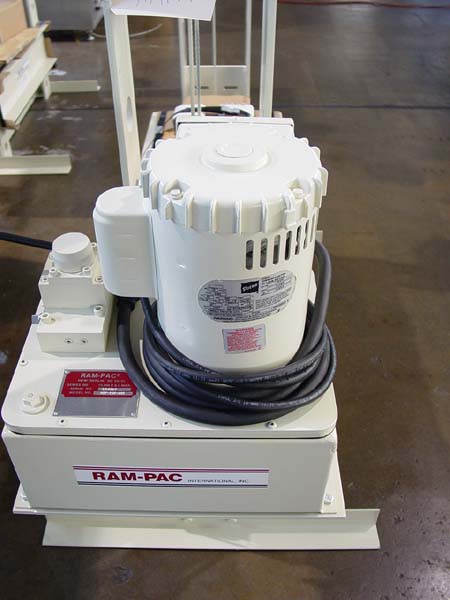

H-Frame Design, RamPac RC-50-DA Hydraulic Cylinder, RamPac HFP560
Hydraulic Unit with Pendent Control, Hand Crank for Bed Elevation,
16" x 42" Bed, Adjustable Vertical Height of Bed, Ram Adjustable Right
to Left on Frame, Quality Heavy Duty Construction. Made in the USA !



CATALOGUE SPECIFICATIONS:



Tonnage Capacity.......................................... 50 Tons
Bed Area.................................................. 16" x 42"
Between Uprights.......................................... 35"
Maximum Pressure.......................................... 10,000 PSI
Maximum Ram Stroke........................................ 13"
Maximum Height Under Cylinder............................. 36"
Minimum Height Under Cylinder............................. 3"
Ram Travel on Frame....................................... 26"
Electrics................................................. 110/3/60
Approximate Machine Dimensions............................ 68" x 28"
Approximate Machine Height................................ 77"
Approximate Machine Weight................................ 1500 LBS




CONDITION: Brand New !
