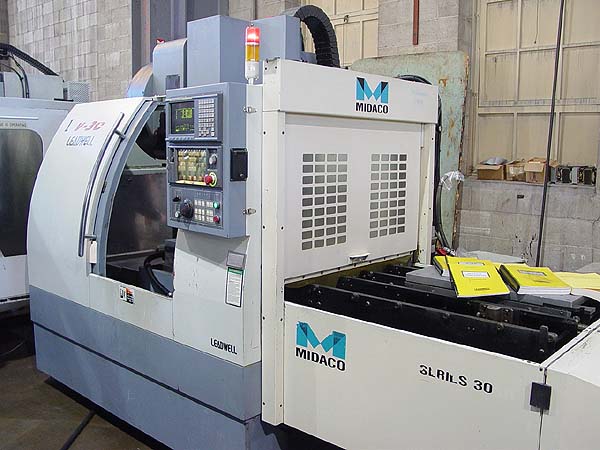

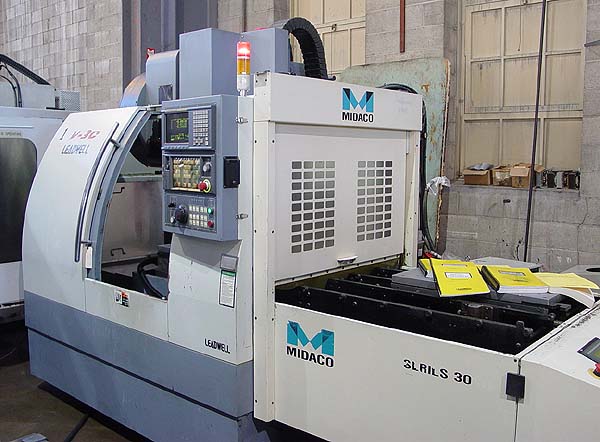

LEADWELL V-30 APC (2) PALLET VERTICAL MACHINING CENTER
Model V-30, New Oct/2002, Stock# K14161
EQUIPPED WITH:
Fanuc 18M CNC Control w/CRT, RS-232 Port, Inch or Metric
Programming,

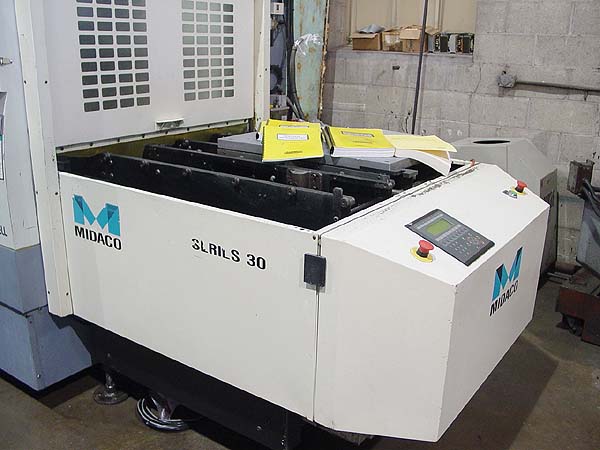

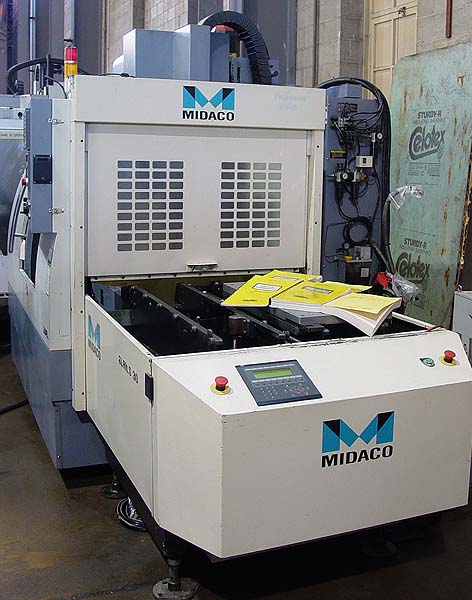

Rigid Tapping, Midaco Series 30 Automatic Pallet Shuttle
System,

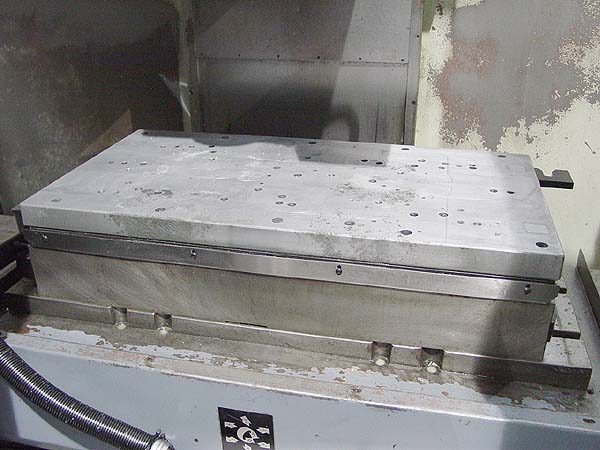

(2) 30" x 15.5" Pallets, 20 Station Automatic Tool Changer,

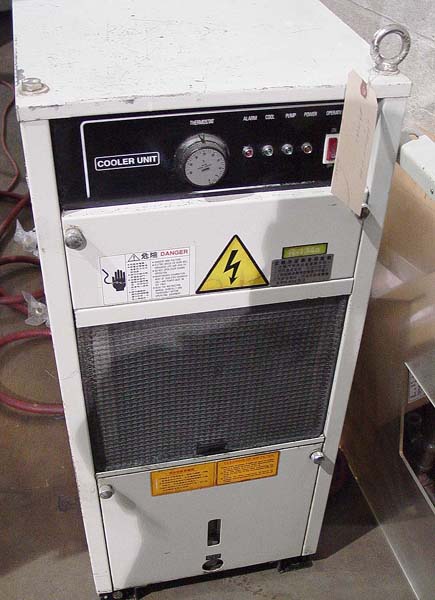

Chiller,

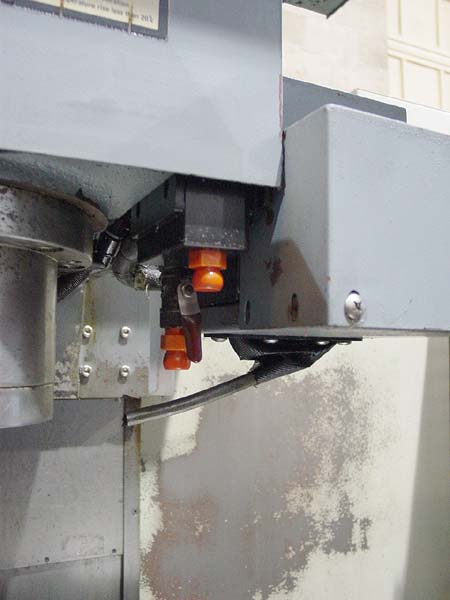

Servo Coolant Nozzle, Flood Coolant System With Full
Chip-Splash
Enclosure.
CATALOGUE SPECIFICATIONS:
Table Working Surface............................. 15.5" x
30"
Table Load Capacity............................... 660 LBS
Longitudinal Travel (X-Axis)...................... 30"
Cross Travel (Y-Axis)............................. 16"
Vertical Travel (Z-Axis).......................... 16"
Maximum Clearance Table Top to Spindle Nose....... 21.3"
Rapid Traverse Rate, X & Y Axes.................. 787 IPM
Rapid Traverse Z-Axis............................. 590 IPM
Tool Storage Capacity............................. 20
Spindle Horsepower................................ 10 HP
Spindle Speeds Range.............................. 0-8000
RPM
Spindle Taper..................................... No. 40
CAT (V-Flange)
Electrics......................................... 220/3/60
Approximate Machine Dimensions.................... 198" x
88"
Approximate Machine Height........................ 105"
Approximate Machine Weight........................ 12,000
LBS
CONDITION: Appears to be in Excellent Condition !
