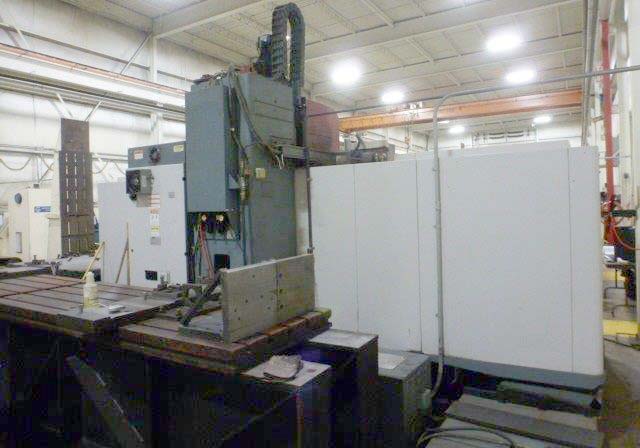

CINCINNATI ARROW-2000 CNC VERTICAL MACHINING CENTER
               Model Arrow 2000, New 1998, S/N 7051A00-98-0037
                                Stock# K14171



EQUIPPED WITH:

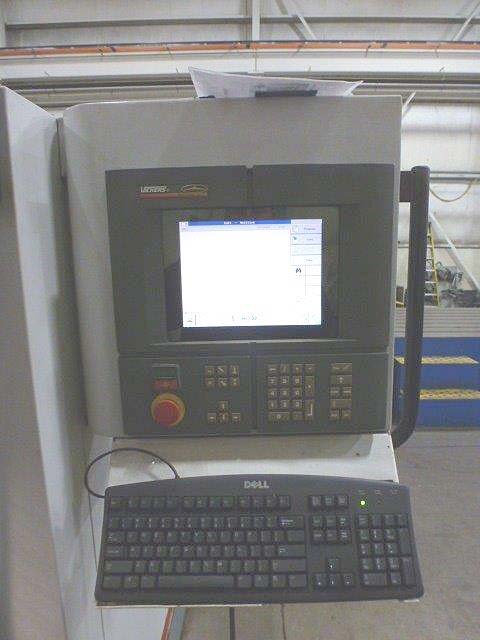

Cincinnati Acramatic 2100 PC-Based CNC Control w/Color CRT,

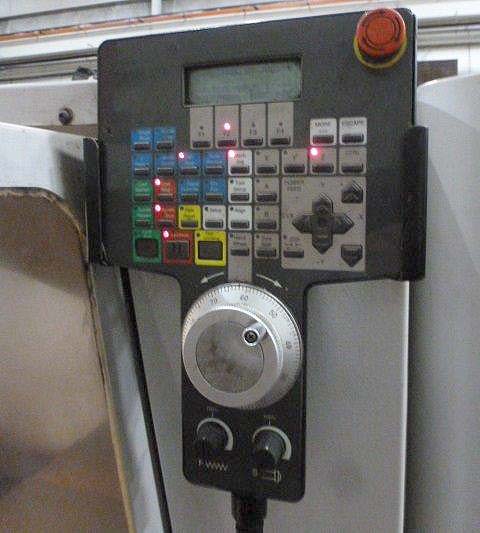

Full Keyboard, 3-1/2"Floppy Disk Drive, Hand-Held Pendent Control,
Background Edit, Multi Part Program Storage, Enhanced Tool Data,

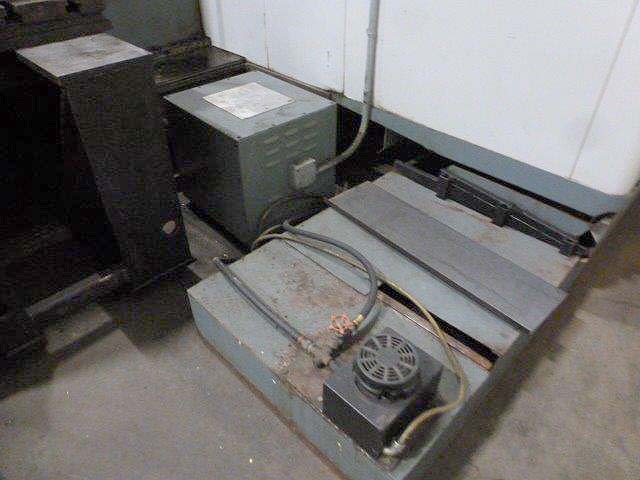

Programmable Offsets, RS-232 Data Line, Full Coolant Enclosure, Coolant
System.



CATALOGUE SPECIFICATIONS:



Table Working Surface................................. 90" x 30"
Table Load Capacity................................... 6615 LBS
Longitudinal Travel (X-Axis).......................... 80"
Cross Travel (Y-Axis)................................. 30"
Vertical Travel (Z-Axis).............................. 30"
Feed Rates (X,Y,Z Axis)............................... .1 - 590 IPM
Rapid Traverse Rate (X,Y & Z-Axis)...................... 945 IPM
Tool Storage Capacity................................. 21
Spindle Horsepower.................................... 15 HP
Spindle Speed Range................................... 60-8000 RPM
Spindle Taper......................................... #40
Electrics............................................. 460/3/60
Approximate Machine Dimensions........................ 213" x 116"
Approximate Machine Height............................ 129"
Approximate Machine Weight............................ 24,000 LBS



CONDITION: Machine Appears to be in Excellent Condition !
