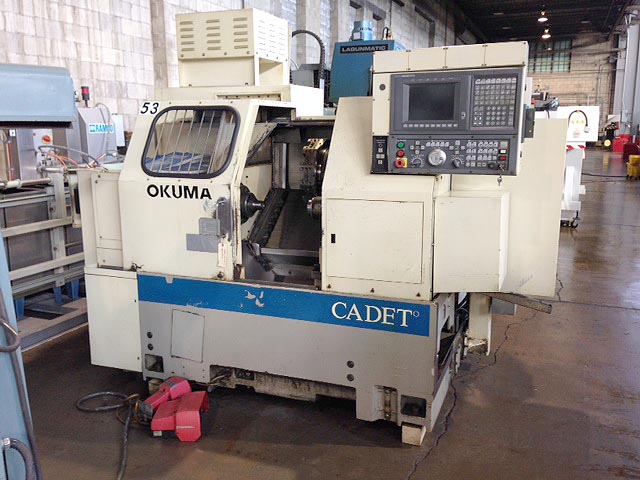

OKUMA CADET "Big Bore" CNC TURNING CENTER
Model LNC-8BB, S/N D569, New 1996
Stock# K14172
EQUIPPED WITH:

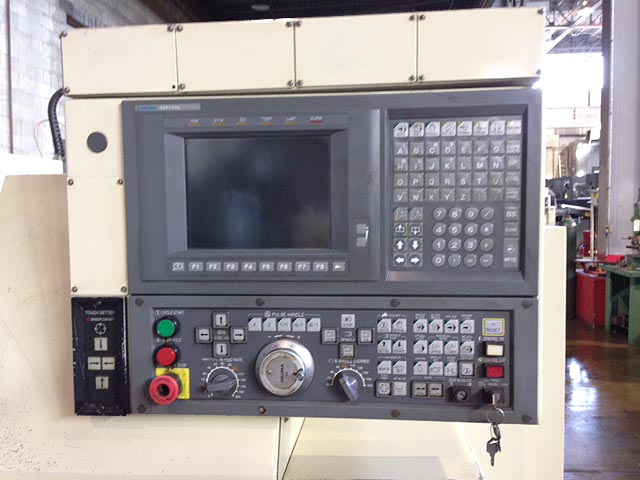

Okuma OSP 700L CNC Control with CRT, 3.15" "Big Bore" Option,
RS232 Port
for DNC System, IGF Programming, Lap-4, NC Torque Limit, 10"
3-Jaw
Kitagawa B-10 Hydraulic Chuck, Exp Auto Chamfer, Tool Setter,
Spare

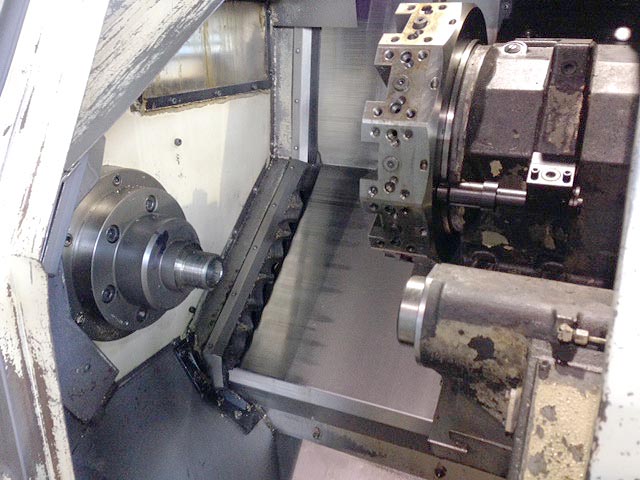

M-Code 2, User Task 2, Animation, Nose Radius 2B, 12 Position
ID/OD Tool
Turret, Heavy Duty Slant Bed Construction with Box Ways,
Coolant System,
Chip Pan, and 220/480 Transformer.
CATALOGUE SPECIFICATIONS:
Max Swing Over Slant Bed..................................
15.75"
Max Swing Over Carriage...................................
9.84"
Cross Travel (X-Axis).....................................
8.23"
Longitudinal Travel (Z-Axis)..............................
19.68"
Feed Range (Infinitely Variable) ......................... .1
to 200 IPM
Rapid Traverse Rate ...................................... 591
IPM
Number of Turrets......................................... 1
Turret Positions.......................................... 12
Spindle Bore..............................................
3.15"
Spindle Speed Range.......................................
65-3500 RPM
Spindle Drive Motor....................................... 15
HP
Electrics.................................................
240/460/3/60
Approximate Machine Dimension.............................
107" x 70"
Approximate Machine Height................................ 75"
Approximate Machine Weight................................
9,900 LBS
CONDITION: Machine Appears to be in Very Good Condition !
