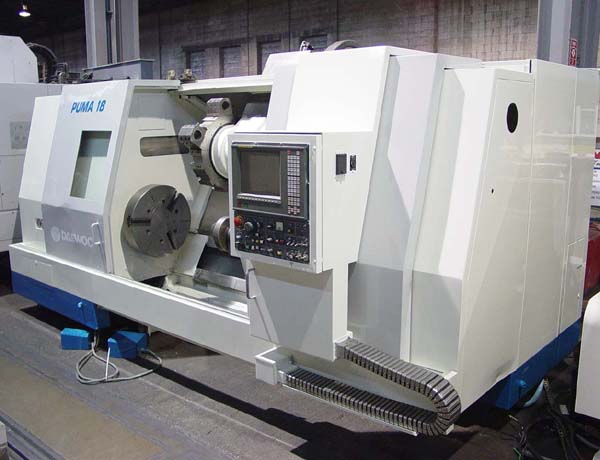

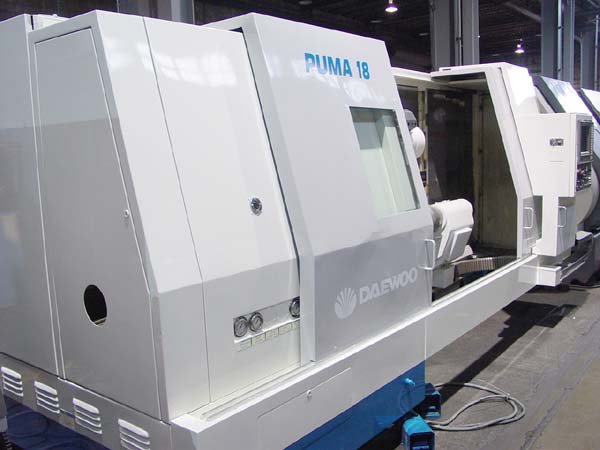

DAEWOO PUMA 18 CNC TURNING CENTER
Model Puma 18, S/N , New 1995
Stock# K14174
EQUIPPED WITH:

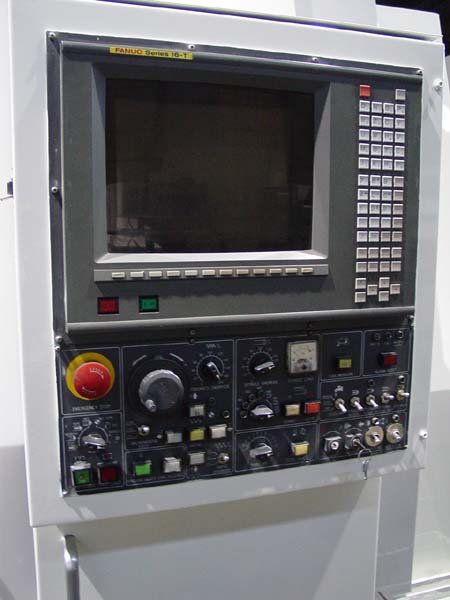

Fanuc 16TA CNC Control w/CRT, 6" Big Bore Spindle Bore Option,

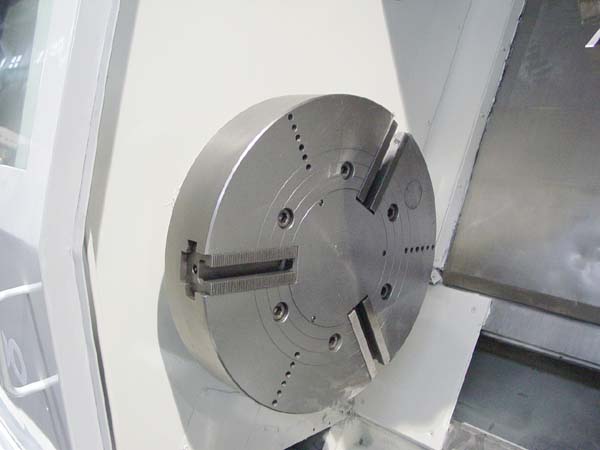

Heavy Duty 60 HP Spindle with 3 Gear Ranges, 24" 3-Jaw Power Chuck, Auto
Backlash Compensation, Constant Surface Speed, Bed Mounted Programmable
Tailstock, Coolant System, and Chip Conveyor.
CATALOGUE SPECIFICATIONS:
Max Swing Over Bed...................................... 35.4"
Maximum Turning Diameter................................ 27.6"
Maximum Turning Length.................................. 62"
Chuck Size.............................................. 24"
Cross Travel (X-Axis)................................... 14.6"
Longitudinal Travel (Z-Axis)............................ 62"
Feed Range (Infinitely Variable)........................ .1-400 IPM
Rapid Traverse Rate (X-Axis)............................ 400 IPM
Rapid Traverse Rate (Y-Axis)............................ 480 IPM

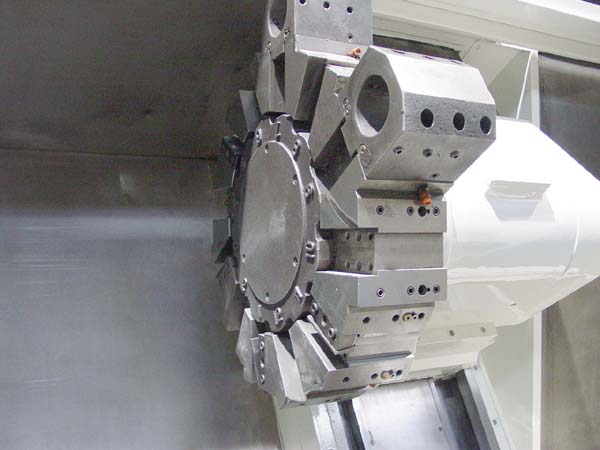

Number of Turrets....................................... 1
Tool Positions.......................................... 12 Total
Spindle Bore............................................ 6"
Spindle Nose............................................ A2-15
Spindle Speed Range (1 RPM Increments).................. 10-1500 RPM
Spindle Horsepower...................................... 60 HP
Approximate Machine Dimensions.......................... 244" x 97"
Approximate Machine Height.............................. 100"
Approximate Machine Weight.............................. 32,000 LBS
CONDITION: Machine Appears to be in Excellent Condition !!
