Toshiba BTD-13R22 5" Spindle CNC Horizontal Boring Mill with Full Contouring 4th Axis Rotary Table

Stock Number K14182

5" Toshiba CNC Horizontal Boring Mill BTD-13 for sale

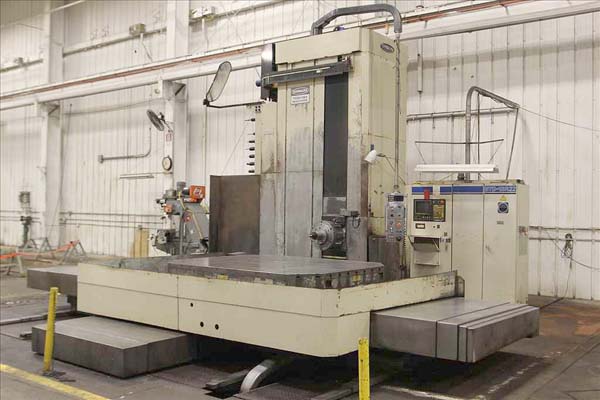

ACTUAL PHOTOS

               5" TOSHIBA 4-AXIS CNC HORIZONTAL TABLE TYPE BORING MILL
                                              Model BTD-13R22, New 19956
                                                            Stock# K14182

EQUIPPED WITH:
Tosnuc 777-2 4-Axis CNC Control, 60-ATC Automatic Tool Changer,
Built-In Full B-Axis, Coolant Thru Spindle, Chip Conveyor.

CATALOG SPECIFICATIONS:
Spindle Diameter................................................. 5.12"
X-Axis Travel (Table Cross Travel)...................... 118.1"
Y-Axis Travel (Vertical Travel of Headstock)........ 90.55"
Z-Axis Travel (Saddle)......................................... 62.99"
W-Axis Travel (Spindle)....................................... 27.55"
Table Size............................................................ 70.8" x 86.6"
B-Axis Table Indexing.......................................... .001
Table Capacity..................................................... 22,000 Lbs
Spindle Taper....................................................... #50
Spindle Speed...................................................... 2,500 RPM
Spindle Motor....................................................... 30 HP
Feeds................................................................... 154 IPM
Rapid Traverse..................................................... 393.7 IPM
Positioning Accuracy............................................. +/- .0002" (XYZ), +/- .0004" (W)
Repeatability.......................................................... +/- .0001" (XYZ), +/- .0003" (W)
