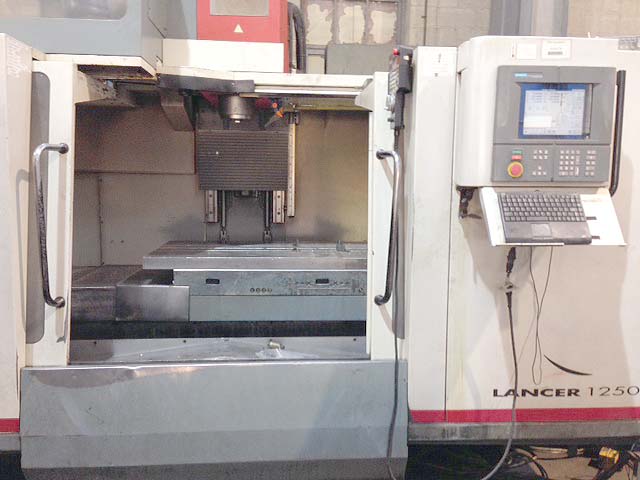

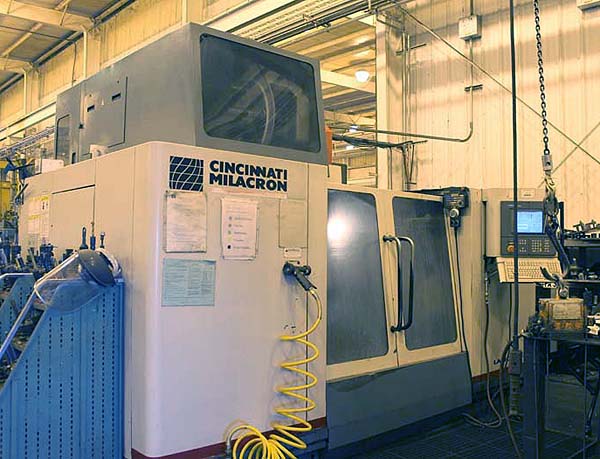

CINCINNATI LANCER-1250 CNC VERTICAL MACHINING CENTER

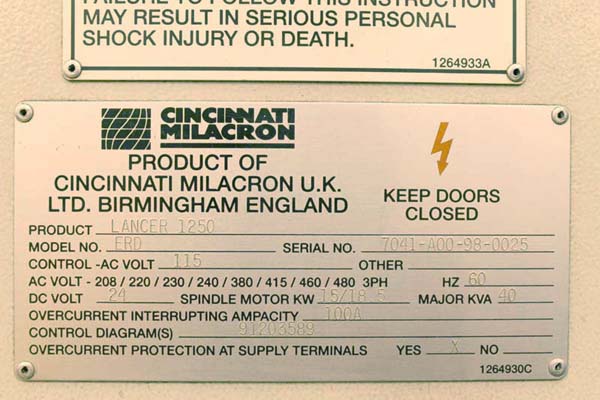

                  Model Lancer 1250, S/N 7041A00-98-0025, New 1998
                                                Stock# K14183



EQUIPPED WITH:

Touch Screen Acramatic 2100 CNC Control, Conversational RAP Programming,

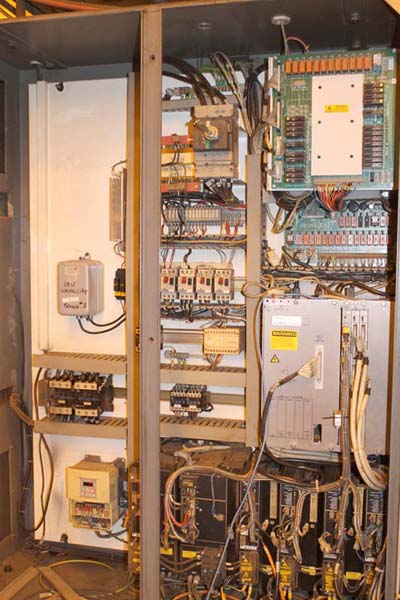

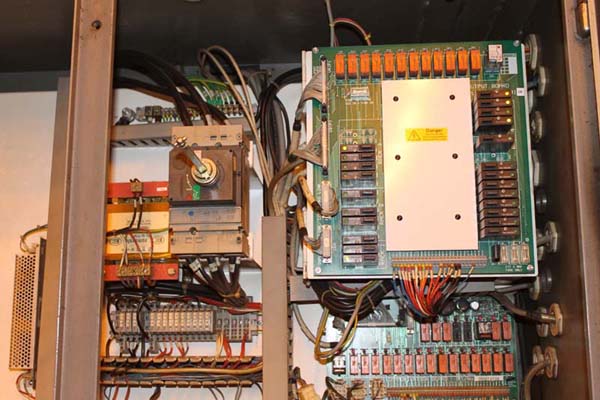

Hand Held Pendant, Keyboard, AC Spindle and Axis Drives, RS232 Data

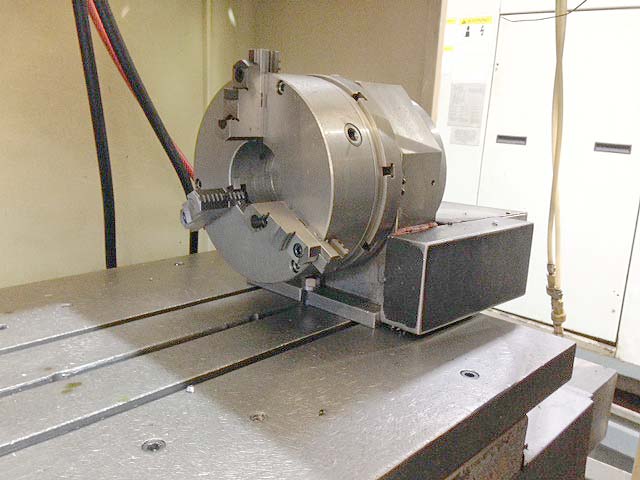

Line, 12" Full Contouring 4th Axis Rotary Table with 5-1/2" Hole Thru
the Table, 12" 3-Jaw Manual Chuck Mounted on the Rotary Table, 3-1/2"

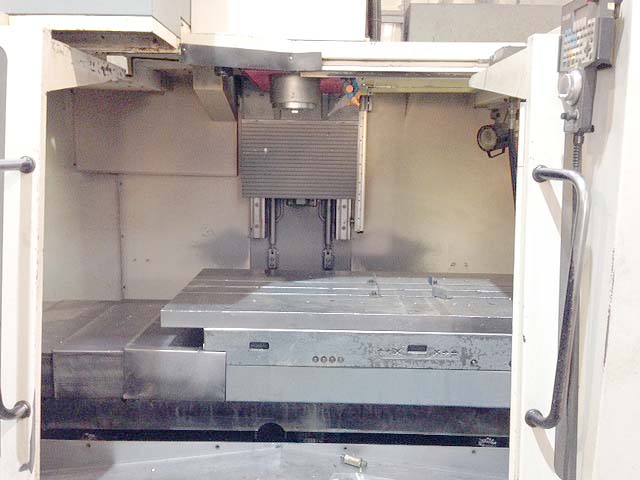

Floppy Drive, Rugged CAT 50 Spindle, 30" x 72" x 2-1/2" Sub-Plate,
Extra Z-Capacity with 38" Spindle Nose to Table, Scale Feedback on X,Y &
Z Axis, Thru the Spindle Coolant, Chip Conveyor.



CATALOGUE SPECIFICATIONS:

Table Working Surface................................. 54" x 26"
Table Load Capacity................................... 3300 LBS
Longitudinal Travel (X-Axis).......................... 50"
Cross Travel (Y-Axis)................................. 30"
Vertical Travel (Z-Axis).............................. 30"
Rapid Traverse Rate (X & Y-Axis)...................... 945
Rapid Traverse Rate (Z-Axis).......................... 708
Tool Storage Capacity................................. 30
Spindle Horsepower.................................... 20 HP
Spindle Speed Range................................... 40-6000 RPM
Spindle Taper......................................... #50 CAT
Electrics............................................. 460/3/60
Approximate Machine Dimensions........................ 146"x138"
Approximate Machine Height............................ 142"
Approximate Machine Weight............................ 26,000 LBS

CONDITION: Machine appears to be in Very Good Condition !
