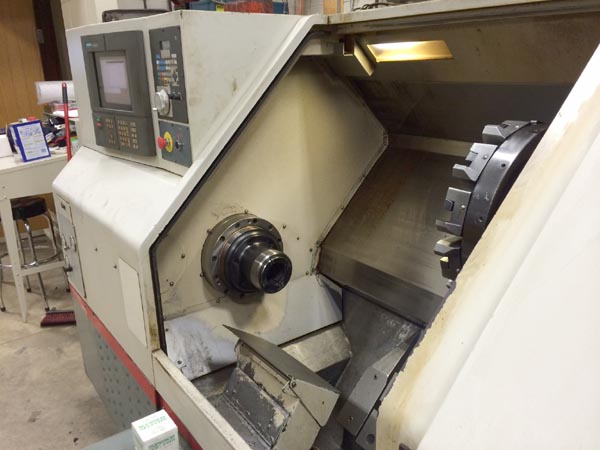

EQUIPPED WITH:

Siemens Acramatic 2100CNC Control with Color CRT,  Multiple
Part Program, 3-1/2" Floppy Disk Drive, Spindle Load Meter with Chart, Part Catcher,
Thermal Compensation, Royal 45116-B 3" Capacity Collet Chuck,
Programmable Tailstock, and Coolant System and Chip Conveyor.



CATALOGUE SPECIFICATIONS:

Max Swing Over Bed...................................... 20.87"
Max Swing Over Carriage................................. 13.78"
Max Tailstock Position.................................. 54"
Cross Travel (X-Axis)................................... 10.63"
Longitudinal Travel (Z-Axis)............................ 27.17"
Feed Range (Infinitely Variable)........................ .1-630 IPM
Rapid Traverse Rate (X-Axis)............................ 630 IPM
Rapid Traverse Rate (Y-Axis)............................ 1000 IPM
Number of Turrets....................................... 1
Tool Positions.......................................... 12 Total
Spindle Bar Capacity.................................... 3.00"
Spindle Nose............................................ A2-8
Spindle Speed Range (1 RPM Increments).................. 30-3300 RPM
Spindle Horsepower...................................... 25 HP
Electrics............................................... 230/460/3/60
Approximate Machine Dimensions.......................... 136" x 74"
Approximate Machine Height.............................. 70"
Approximate Machine Weight.............................. 11,300 LBS

CONDITION: Machine Appears to be in Excellent Condition!!
