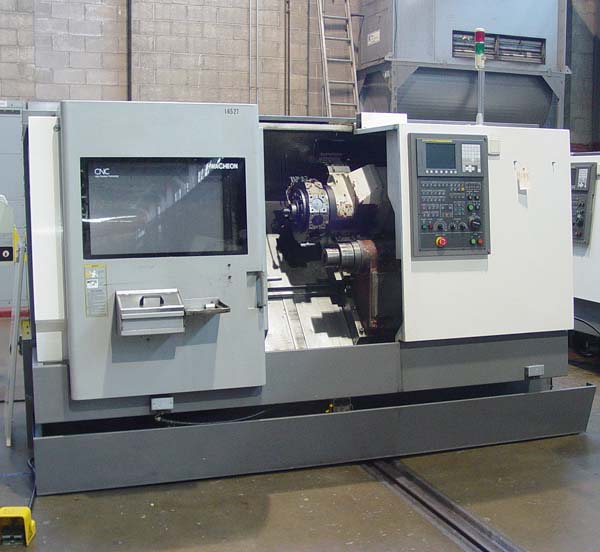

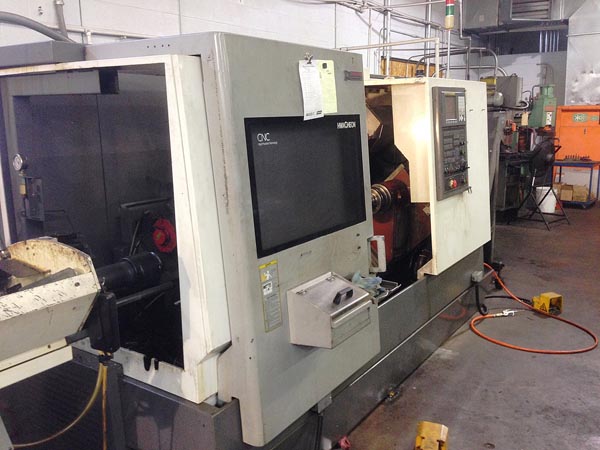

EQUIPPED WITH:
Fanuc 0i-TC CNC Control, Multiple Part Program Storage, RS-232 Port,
Live Tooling, Full Contouring C-Axis Spindle, Sub-Spindle, ATS Low
Profile Collet Chuck, Lexair Model FB10-32 Front Actuated Collet Chuck,

Parts Catcher, Barfeed Interface, MTA 12' Magazine Bar Feeder, Sub-Spindle Part Ejector,

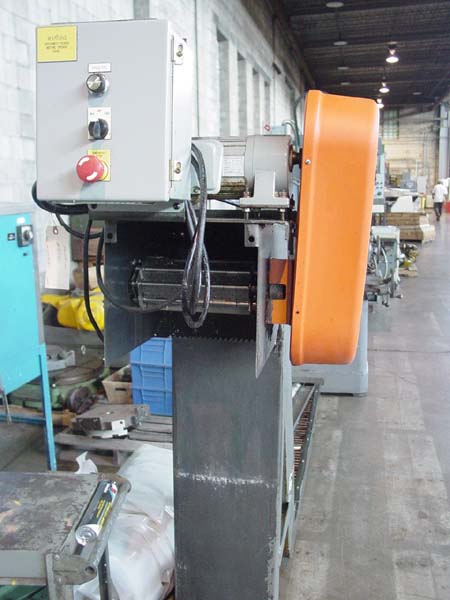

Rigid Tapping with Rotary Tools, Chip Conveyor and High Pressure Coolant System.



CATALOGUE SPECIFICATIONS:
Max Swing Over Bed...................................... 22.8"
Max Turning Diameter.................................... 15"
Max Machining Length.................................... 23.6"
Spindle Nose............................................ A2-6

Bar Capacity with Lexair Chuck..........  3"

Spindle Bore............................................. 3.1"
Cross Travel (X-Axis)................................... 8.46"
Longitudinal Travel (Z-Axis)............................ 26.19"
Rapid Traverse Rate (X & Z Axis)............................ 1417 IPM
Number of Turrets....................................... 1
Tool Positions.......................................... 12 Total
Spindle Speed Range..................................... 50-5000 RPM
Spindle Horsepower...................................... 25 HP
Sub-Spindle Speed Range................................. 60-6000 RPM
Sub-Spindle Horse Power................................. 10 HP
Milling Spindle Speed Range............................. 50-5000 RPM
Milling Spindle Horse Power............................. 5 HP
Approximate Machine Dimensions.......................... 161" x 84"
Approximate Machine Height.............................. 73"
Approximate Machine Weight.............................. 10,000 LBS



CONDITION: Machine Appears to be in Excellent Condition !
