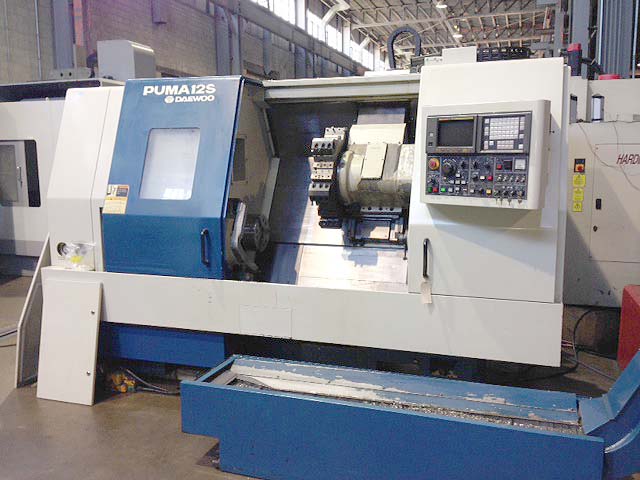

DAEWOO PUMA 12S CNC TURNING CENTER
Model Puma 12S, S/N PS100977, New 6/1996
Stock# K14237
EQUIPPED WITH:

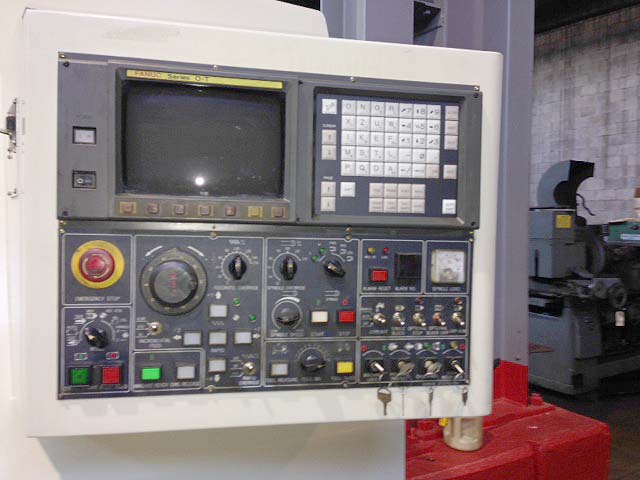

Fanuc OT CNC Control w/CRT, Heavy Duty 35 HP Geared Spindle,
10"
3-Jaw Power Chuck with 3.07" Thru Hole, Auto Backlash
Compensation,
12 Station Tool Turret, Tool Setter, Constant Surface Speed,
Bed
Mounted Programmable Tailstock, Heavy Duty Box Way
Construction, Coolant

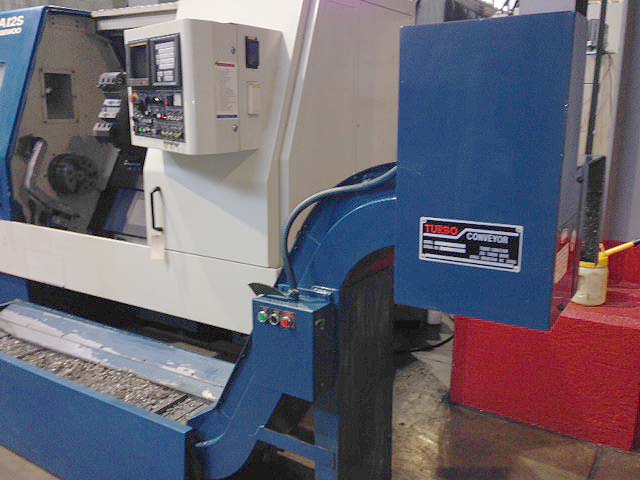

System, Chip Conveyor, 6 Boring Bar Holders and 6 Stick Tool
Holders.
CATALOGUE SPECIFICATIONS:
Max Swing Over Bed......................................
22.4"
Maximum Turning Diameter................................ 15"
Maximum Turning Length.................................. 30"
Chuck Size.............................................. 10"
Cross Travel (X-Axis)................................... 8"
Longitudinal Travel (Z-Axis)............................ 30"
Rapid Traverse Rate (X-Axis)............................ 480
IPM
Rapid Traverse Rate (Y-Axis)............................ 630
IPM
Number of Turrets....................................... 1
Tool Positions.......................................... 12
Total
Spindle Bore............................................
3.58"
Bar Capacity with Chuck and Actuator....................
3.07"
Spindle Nose............................................
A2-8
Spindle Speed Range (1 RPM Increments)..................
10-3000 RPM
Spindle Horsepower...................................... 35
HP
Approximate Machine Dimensions..........................
125" x 82"
Approximate Machine Height.............................. 80"
Approximate Machine Weight..............................
15,600 LBS
CONDITION: Machine Appears to be in Very Good Condition !!
