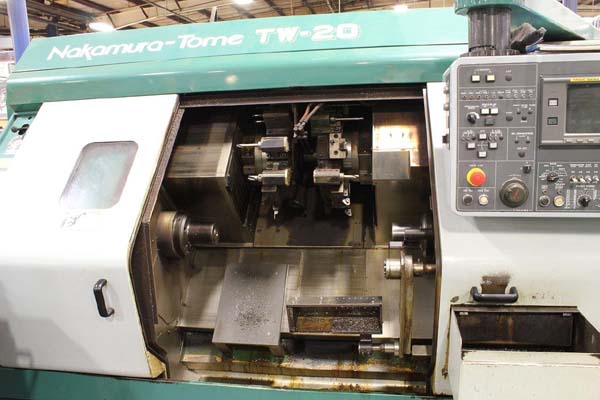

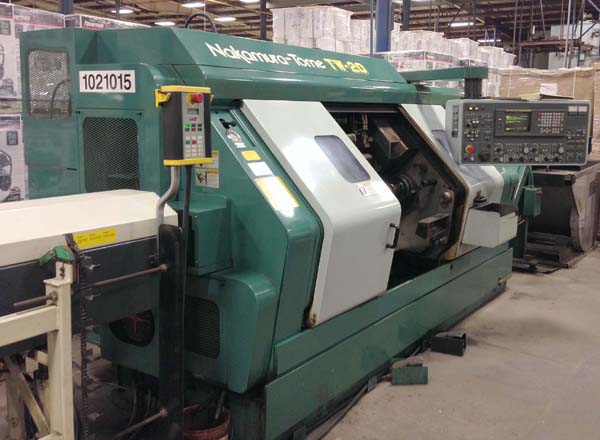

NAKAMURA TOME TW-20 TWIN SPINDLE, TWIN TURRET CNC TURNING CENTER

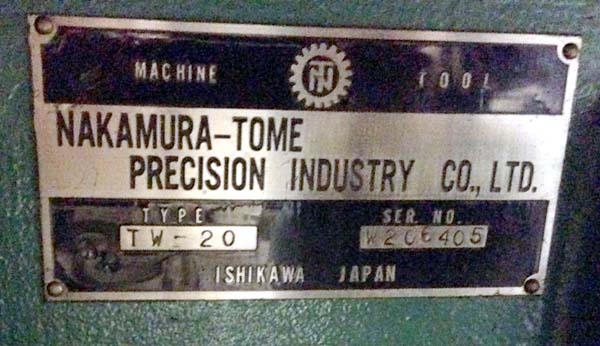

                                Model TW-20, S/N 206405, New 1999
                                                    Stock# K14273
EQUIPPED WITH:

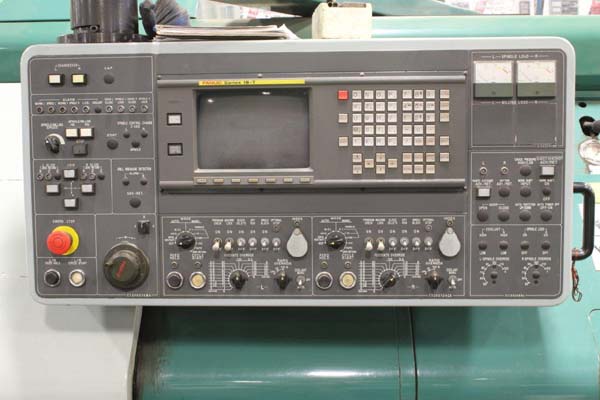

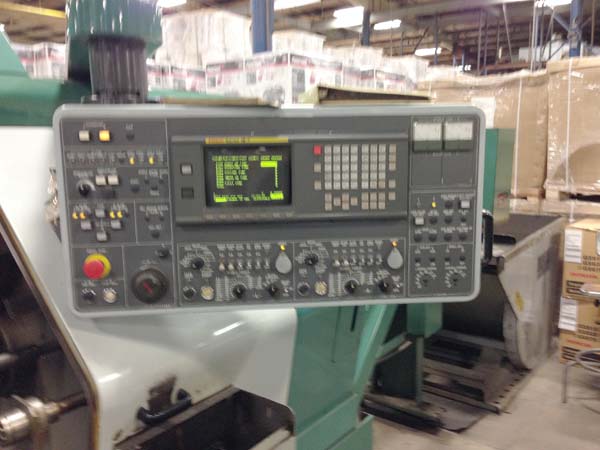

FANUC 18T CNC Control, Twin Upper Turrets, Main Spindle and Sub-Spindle,

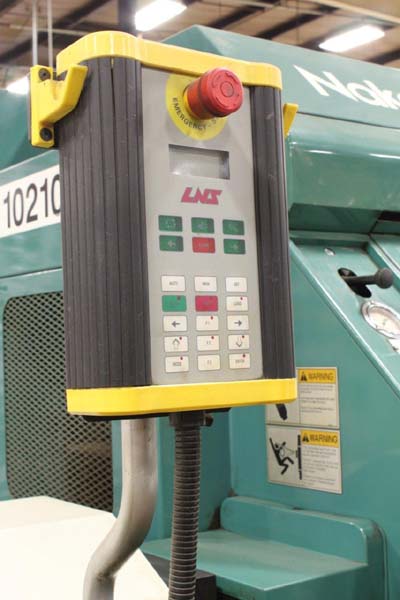

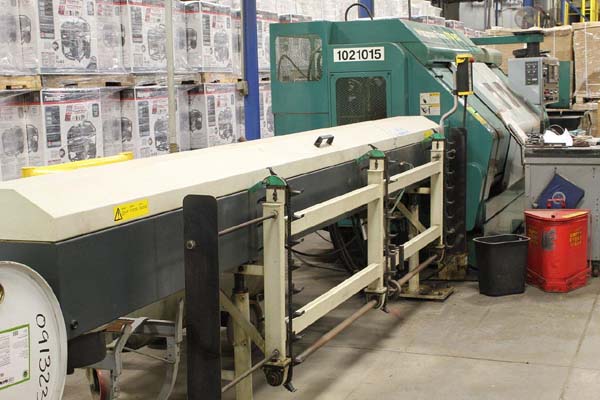

C-Axis on Both Spindles,  LNS Sprint Bar-Feeder, Parts Catcher, Chip
Conveyor and Coolant System.



CATALOGUE SPECIFICATIONS:
Bar-Capacity................................................ 2"
Max Swing Over Slant Bed ................................... 12.2"
Max Turning Capacity........................................ 10.63"
Max Distance Between Spindles............................... 42.51"
Cross Travel (X-Axis)          Turret 1..................... 7.68"
                               Turret 2..................... 7.68"
Longitudinal Travel (Z-Axis)   Turret 1..................... 10.43"
                               Turret 2..................... 30.71"
C-Axis on Both Spindles..................................... .001 Degree
Tool Positions (12 on Each Turret).......................... 24 Total
Spindle Nose ............................................... A2-6
Spindle Speed Range ........................................ 50-5000 RPM
Spindle Horsepower.......................................... 20 HP
Approximate Machine Dimensions.............................. 121" x 75"
Approximate Machine Height.................................. 80"
Approximate Machine Weight.................................. 12,000 LBS

CONDITION:  Appears to be in Excellent Condition !
