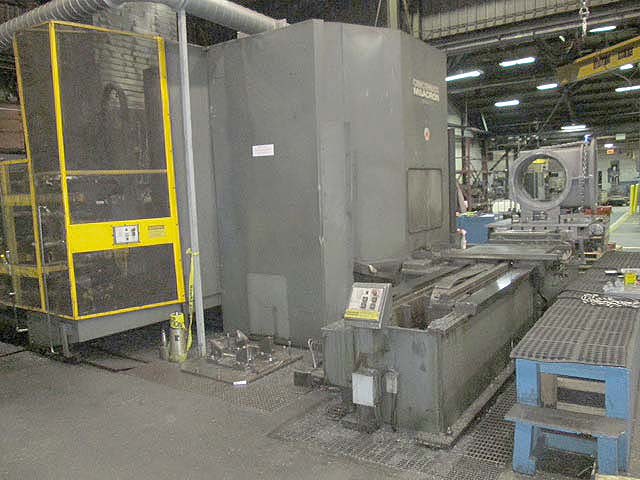

6" CINCINNATI HEAVY DUTY T-BAR HORIZONTAL BORING MILL
            Model T-BAR, New 1994 Retrofit 2004, Stock # K14274



This Machine is recommended for Large Parts exceeding the limitation of
other equipment. Excessive amounts of metal can be removed economically
by Milling, Drilling & Boring.  This machine is presently being
used for Milling, Drilling & Tapping of Valve Body and Connectors.



EQUIPPED WITH:
IBH Automation PA 800E CNC Control, Windows Based Control, Multiple Part
Program Storage, RS-232 Port, Ethernet, Probing, (2) 49.2" X 49.2"
Pallets with 1 Degree Indexing Pallet Rotation, 130 Station Automatic
Tool Changer, Flood/Mist Coolant.



CATALOGUE SPECIFICATIONS:
Spindle Diameter................................... 6" Bar
Table Longitudinal Travel (X-Axis)................. 84"
Spindle-Head Vertical Travel (Y-Axis).............. 72"
Spindle Travel (Z-Axis)............................ 24"
Table Cross Travel (W-Axis)........................ 60"
Pallet Size........................................ 49.2" x 49.2"
Spindle Taper...................................... Cat-50
Spindle Horsepower................................. 60 HP
Spindle Speeds .................................... 2400 RPM
Spindle Feeds ..................................... .1 to 600 IPM
Milling Feeds (X-Y-Z).............................. .1 to 400 IPM
Power Rapid Traverse (X-Y-Z)....................... 600 IPM
Electrics (Wired 460).............................. 460/3/60
Approximate Floor Space Required................... 244" x 187"
Approximate Machine Height......................... 206"
Approximate Machine Weight......................... 104,000 LBS



CONDITION:  Appears to be in Very Good Condition.
