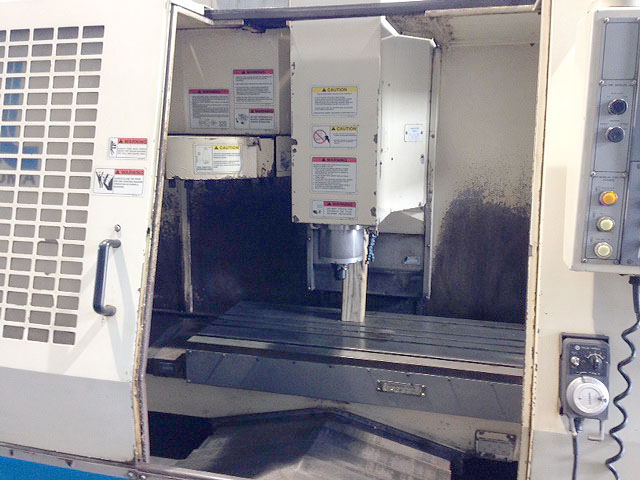

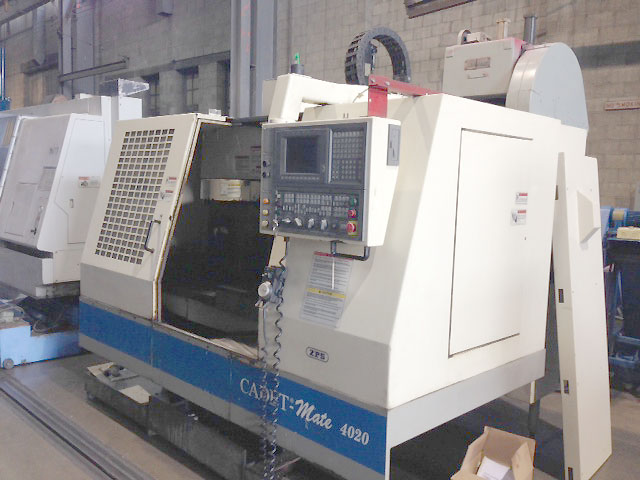

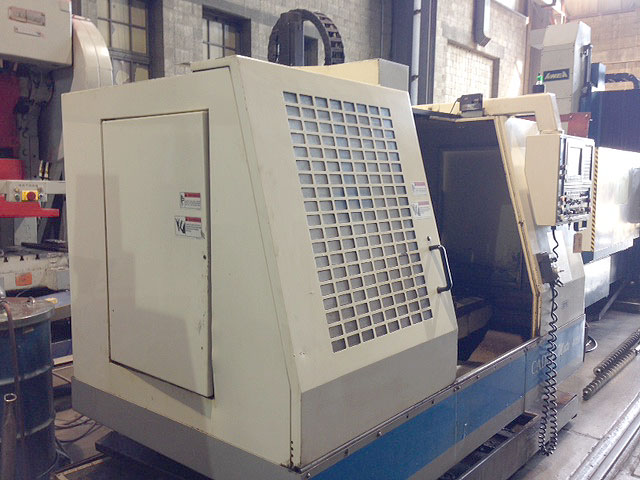

Model Cadet Mate 4020, S/N 0785, New 1999
                                Stock# K14282



EQUIPPED WITH:

OSP 700M CNC Control, RS 232 Port, Floppy Disk Drive, Graphics,
Animation, Helical Cut, DNC B, Synchro Tap, 20 Station Automatic Tool

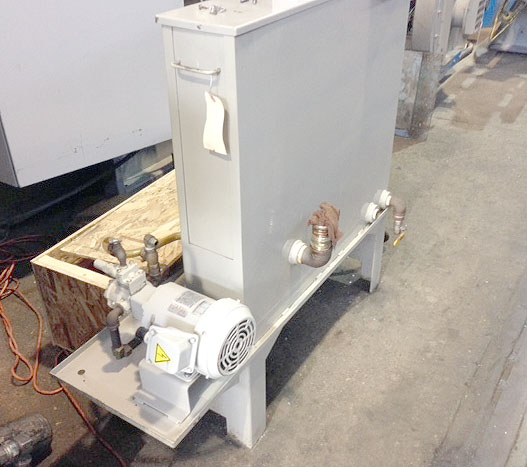

Changer, Chip Conveyor and Coolant System, Thru Spindle Coolant.



CATALOGUE SPECIFICATIONS:

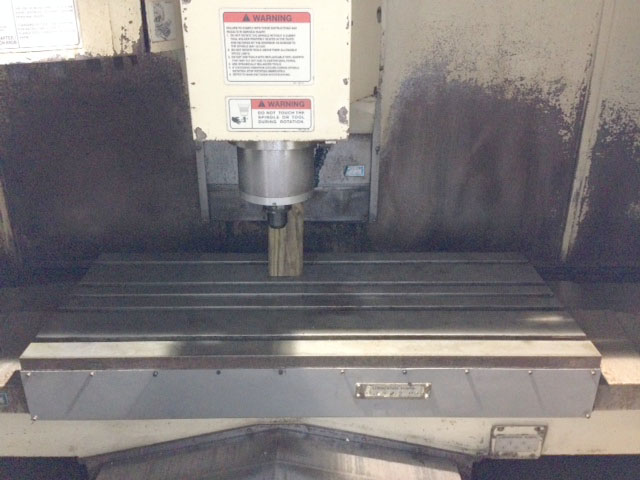

Table Working Surface............................. 47.25" x 20.0"
Table Load Capacity............................... 1,500 LBS
Longitudinal Travel (X-Axis)...................... 40"
Cross Travel (Y-Axis)............................. 20"
Vertical Travel (Z-Axis).......................... 20"
Rapid Traverse Rate(All Axes)..................... 787 IPM
Spindle Face to Table Surface..................... 7.87" - 28.46"
Spindle Center to Column ......................... 20.079"
Table Surface to Floor............................ 31.89"
Tool Storage Capacity............................. 20
Maximum Tool Diameter.............................. 3.54"
Maximum Tool Length............................... 11.8"
Maximum Tool Weight............................... 17 Lbs.
Spindle Speeds Range.............................. 40-8000 RPM
Spindle Taper..................................... # 40
Approximate Machine Dimensions.................... 110" x 79"
Approximate Machine Height........................ 114"
Approximate Machine Weight........................ 9,860 LBS



CONDITION: Machine Appears to be in Excellent Condition!
