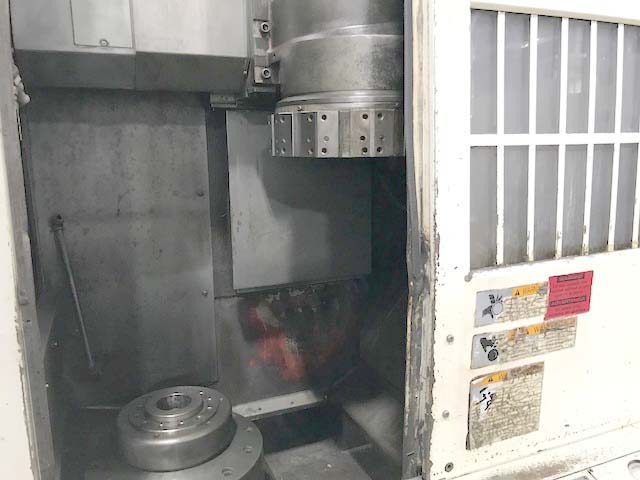

OKUMA & HOWA 2SP-V40 TWIN SPINDLE CNC VERTICAL TURNING CENTER
Model 2SP-V40, S/N 35501, New 2001
Stock# K14293
EQUIPPED WITH
Fanuc 18T CNC Controls, Multiple
Part Program Storage, RS-232 Port,
(2) 12-Position Horizontal
Turrets, (2) 28 HP Spindle Motors,
Coolant, Auto Lube System.
SPECIFICATIONS
Swing Inside the
Guards................................
20"
Standard Chuck Size (Not
Equipped)..................... 15"
Max. Cutting Diameter with
Standard Tool Holders....... 15.7"
Max. Cutting Diameter with Special
Toolholders......... 20"
Max. Cutting
Length....................................
17.7"
Spindle Center Height From
Floor....................... 37.8"
Spindle
Speed..........................................
20-2500 RPM
Spindle
Nose...........................................
A2-8
Turret
Type............................................
Drum Type
Number of
Turrets......................................
2
Tool Positions on each
Turret..........................
12 ea
X-Axis
Travel..........................................
10.4"
Z-Axis
Travel..........................................
17.7"
Rapid Rates X &
Z......................................
944 IPM
Approximate Machine
Dimensions..................... 92" x 117"
Approximate Machine
Height.............................
120"
Approximate Machine
Weight.............................
32,000 Lbs
