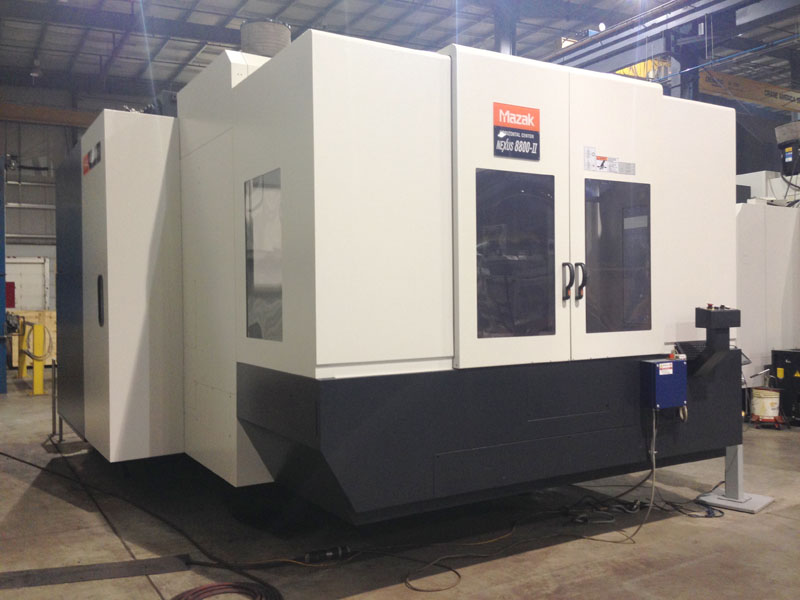

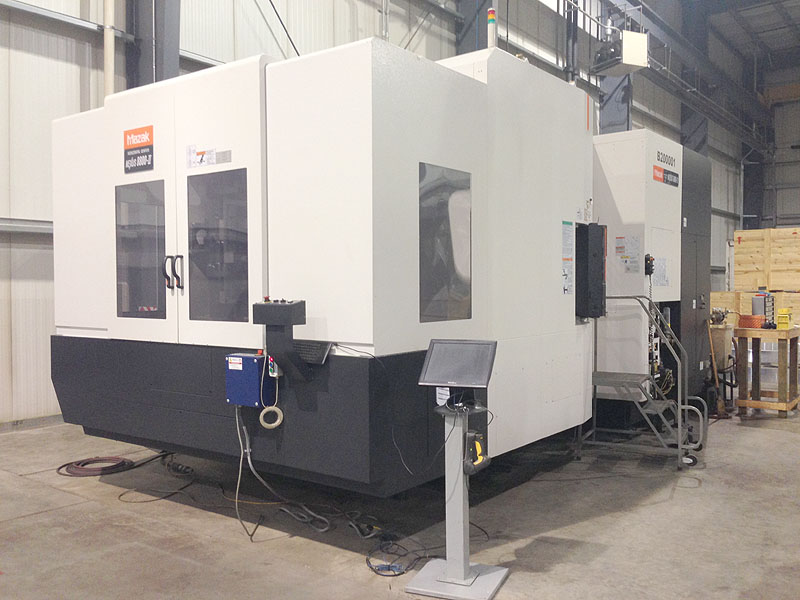

MAZAK NEXUS 8800 II
CNC HORIZONTAL MACHINING CENTER
Model NEXUS 8800II, New 2009
Stock # K14304
EQUIPPED WITH:

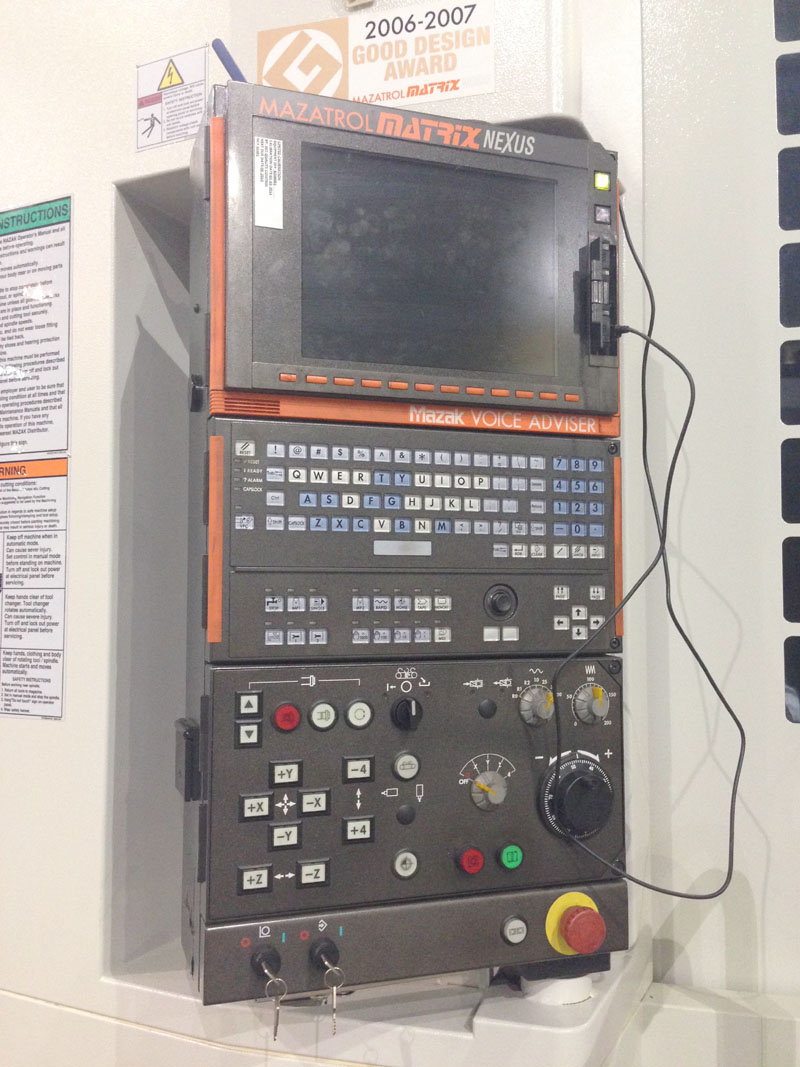

Mazak Matrix CNC CNC
Control, Mazatrol Conversational Programming,
Full Contouring 4th Axis Pallet Rotation, Tool Probes,
Part Probe,
Rigid Tapping, Helical Interpolation, Two 31" x 31"
Pallets,
80 Position Automatic Tool Changer, RS-232 Port, Full
Coolant Enclosure,
Thru Spindle Coolant, Chip Conveyor and High Pressure
Coolant System
System.
CATALOGUE SPECIFICATIONS:
Longitudinal Travel (X-Axis)
........................... 55.12"
Vertical Travel (Y-Axis)
............................... 47.24"
Spindle Travel (Z-Axis)
................................ 52.17"
Pallet Dimensions
...................................... 31.5"x 31.5"
Maximum Pallet Load
.................................... 4850 LBS
Number of Pallets
...................................... 2
Number of Index
Positions............................... 360,000
Spindle Center to Table
Top............................. 1.97" - 56.1"
Spindle Nose to Table
Center............................ 3.94" -51.18"
Rapid Traverse, All Axes
............................... 2047 IPM
Spindle
Horsepower...................................... 50 HP
Spindle Speed
Range..................................... 30 - 7,000
RPM
Spindle Taper
.......................................... #50
CAT
Number of Tool Stations
................................ 80
Electrics...............................................
220/3/60
Approximate Floorspace Dimensions
...................... 152" x 316"
Approximate Machine Height
............................. 147"
Approximate Machine Weight
............................. 67,000 LBS
CONDITION: Machine was purchased for a nuclear program
that was
cancelled prior to parts being run. Less than 500
hours of training and
test runs on the machine. Appears to be in Like New
Condition !
