OKUMA LU-15 4-Axis CNC Turning Center with Upper and Lower Turrets and Tailstock

Stock Number K14306

Okuma LU-15 4- Axis CNC Turning Center CNC Lathe for sale

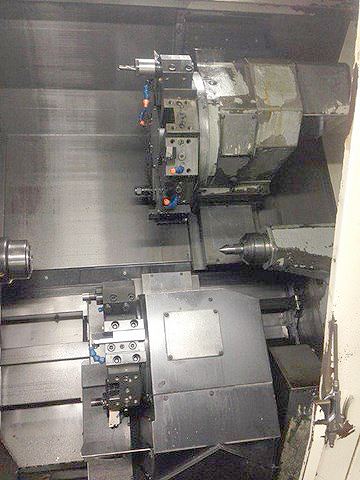

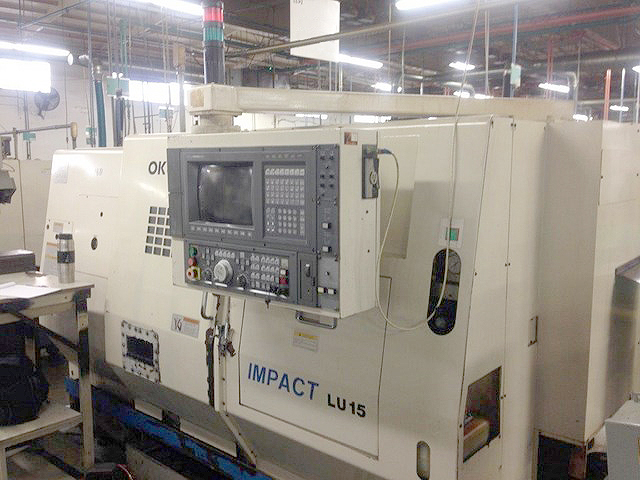

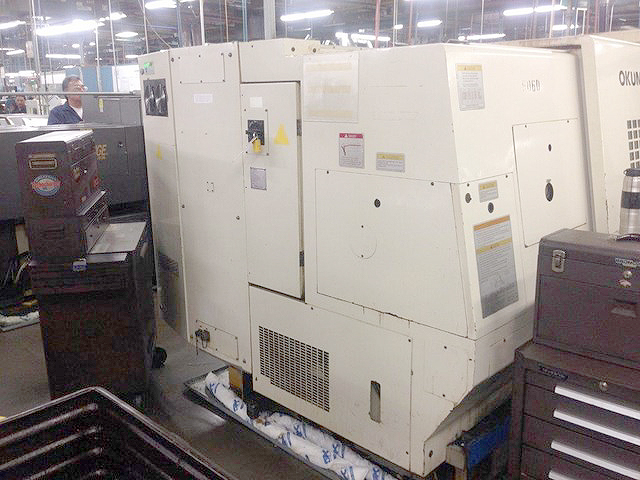

ACTUAL PHOTOS

OKUMA IMPACT LU-15 4-Axis CNC TURNING CENTER
Model LU-15, New 1997, Stock #K14306

EQUIPPED WITH:
Okuma OSP7000L CNC Control w/Color CRT, 3.5" Floppy Disk Drive, NC Torque Limit, Animation, Lap-4, User
Task 2, Cycle Time Calculator, Hydraulic Collet Chuck, Programmable Tailstock Option, 30 HP Spindle, 12 Position Upper and 8 Position Lower Simultaneous Tool Turrets (20 Total Tools), Chip Conveyor and Coolant System.

CATALOGUE SPECIFICATIONS:
Max Swing Over Slant Bed .................................... 22"
Max Turning Diameter......................................... 14.17"
Max Machinable Center Distance............................... 23.62"
Cross Travel (X-Axis)         Upper Slide Above Center....... 11.6"
                              Lower Slide Below Center ...... 7.6"
Longitudinal Travel (Z-Axis) Upper Slide.................... 29.6"
                              Lower Slide ................... 21.4"
Feed Range X & Y-Axis (Infinitely Variable) .................. 400 IPM
Rapid Traverse Rate X & Y Axis .............................. 400 IPM
Tool Positions (12-Upper & 8-Lower).......................... 20 Total
Spindle Bore ................................................ 2.75"
Spindle Speed Range ......................................... 4500
Spindle Horsepower........................................... 30 HP
Approximate Machine Dimensions............................... 189" x 78"
Approximate Machine Height................................... 79"
Approximate Machine Weight................................... 24,000 LBS

CONDITION: Machine appears to be in Excellent Condition !
